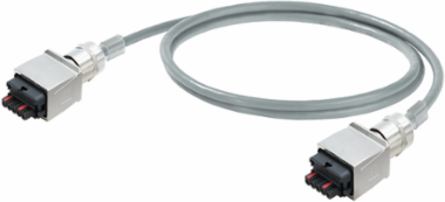

Weidmuller 1350120150 IE-CSPS5VS0150VAPVAP-X
- MPN: 1350120150
- PPN: WDM-1350120150
CAD
$163.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
System cable, PushPull Power, PushPull Power, PVC, 15 m
Documentation & Downloads
Specifications
Electrical Properties
| Current-carrying capacity at 50 °C | 16 A |
|---|
| Rated voltage | 24 V |
|---|
Cable Structure
| Wire connection cross section AWG, max. | AWG 16 |
|---|---|
| Insulation | PVC |
| Material sheath | PVC |
| Sheathing colour | grey (similar to RAL 7001) |
| Cross-section | 5*1.5 mm² |
|---|---|
| Number of wires | 5 |
| Sheath diameter, max. | 8.1 mm |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 4 x cable diameter |
|---|
Dimensions And Weights
| Length | 15 m |
|---|---|
| Net weight | 2,040 g |
| Length (inches) | 0.591 inch |
|---|
Plug
| Connector left | PushPull Power |
|---|
| Connector right | PushPull Power |
|---|
Standards
| Connector standard | in accordance with PROFINET specification |
|---|
Classifications
| ETIM 6.0 | EC000993 |
|---|---|
| eClass 9.0 | 27-06-20-01 |
| eClass 10.0 | 27-06-01-05 |
| ETIM 7.0 | EC003248 |
|---|---|
| eClass 9.1 | 27-06-23-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
