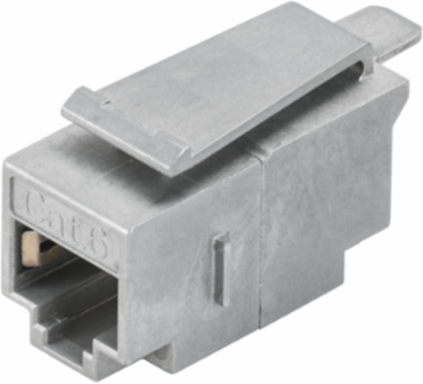

Weidmuller 8952950000 IE-XR-RJ45/RJ45-2
- MPN: 8952950000
- PPN: WDM-8952950000
CAD
$27.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mounting flange, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20
Documentation & Downloads
Specifications
Electrical Properties
| Contact resistance | ≤ 20 mΩ |
|---|---|
| Dielectric strength, contact / contact | ≥ 1000 V DC |
| Insulation strength | > 500 MΩ |
| Current-carrying capacity at 50 °C | 1 A |
|---|---|
| Dielectric strength, contact / shield | ≤ 1500 V DC |
| PoE / PoE+ | conforming to IEEE 802.3at |
General Data
| Housing main material | Zinc diecast |
|---|---|
| Protection degree | IP20 |
| Plugging cycles | 750 |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
|---|---|
| Insertion force | ≤ 30 N |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 21.333 g |
|---|
Standards
| Connector standard | IEC 60603-7-5 |
|---|
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-44-03-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
