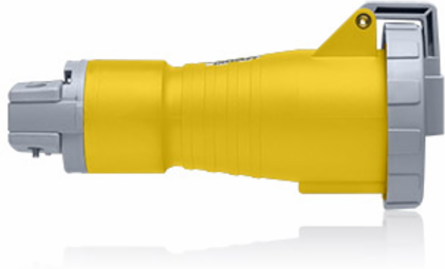

Leviton 320C4W 20 Amp 125 Volt North American Pin & Sleeve Connector, IP67 Watertight, Yellow
- MPN: 320C4W
- PPN: LEV-320C4W
CAD
$276.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp 125 Volt North American Pin & Sleeve Connector, IP67 Watertight, Yellow
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- 2-Year Limited
- CE Marking
- Per low voltage directives 73/23/EEC, 93/68/EEC
- UL Listed
- 1682 and 1686
CSA CertifiedC22.2 No 182.1
IEC Rating60309-1 and 60309-2
Material Specifications
- Internal Cord Clamp Assembly
- Thermoplastic
- Sleeve Spring
- Stainless Steel
- Terminal Screws
- Steel
- Body Material
- Valox 357
- Gland Cap
- Valox 357
- Cover with Arm
- Valox 357
- Internal Screws
- Zinc-plated steel
Cover EyeletNickel-Plated Brass
Arm SpringPerformance Grade Stainless Steel
Grommet/GasketChloroprene
External ScrewsAcid-Proof S/S
External Cord Clamp AssemblyValox 357
Phase and Ground SleevesBrass
Contact CarrierNylon
Mechanical Specifications
- Minimum Withdrawal Force
- 5lbs
- Cable Secureness
- Force: 30lb, Torque: 0.4 ft-lb, Max Disp: <= 3/32"
- Crush Test
- 250lbs for 1 min after -25°C for 6 hrs
Cord Range.350 - .860
Impact ResistanceDrop from 30" 8 times after conditioning to -25°C for 6 hrs
Product Features
- Color
- Yellow
- Configuration
- North American
- IEC Rating
- 60309-1 and 60309-2
Device TypeConnector
Country Of OriginPlease Contact Customer Service.
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Moisture Resistance
- Per UL 1682, immersed for 24 hours in 5cm of 25°C water
Corrosion ResistanceFerrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min
IP RatingIP67/IP69K
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- 2000V for 1 min.
- Temperature Rise
- Max 30°C temp rise at full-rated current after 50 cycles of OL at 150% rated current
- Pole
- 2
- Voltage
- 125 VAC
Wire3
Current InterruptingCertified for current interrupting at full rated current
EnduranceUp to 5000 connects and disconnects, under load, at full rated current and voltage
Insulation Resistance500V for 1 min; >= 5MΩ
