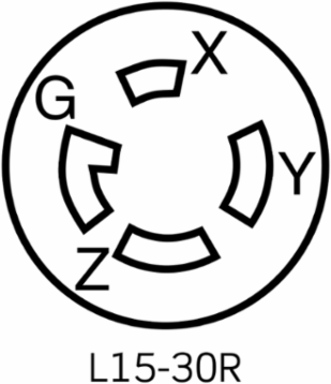

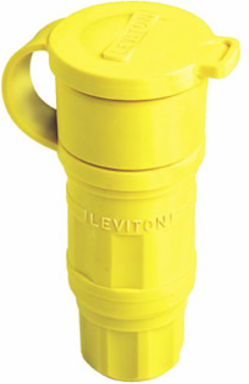

Leviton 29W75 Wetguard Watertight Locking Connector 30 Amp 250 Volt NEMA L15-30R
- MPN: 29W75
- UPC: 078477968789
- PPN: LEV-29W75
CAD
$202.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL | 498 |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| Warranty | Limited Lifetime Warranty Warranty |
Material Specifications
| Assembly Screws | Stainless Steel, Non-Magnetic |
|---|---|
| Body Interior | Nylon |
| Bushing | Santoprene TPV |
| Terminal Screws | Electroless Nickel-coated Brass |
| Blades/Contacts | Electroless Nickel-coated Brass |
|---|---|
| Body Material | Santoprene TPV |
| Compression Nut, Strain Relief | Nylon |
| Wire Module | Nylon |
Mechanical Specifications
| Cord Grip Range (in) | .625-1.125 |
|---|---|
| Terminal Accom. | #12 to #8 |
| Torque Range | 12-14 in-lbs |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Wetguard |
|---|---|
| Device Type | Locking Connector |
| Color | Yellow |
|---|
Environmental Specifications
| Environment | Wet |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-2 per UL 94 |
|---|
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Phase | 3-Phase |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 4 |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Pole | 3 |
| Voltage | 250 VAC |
