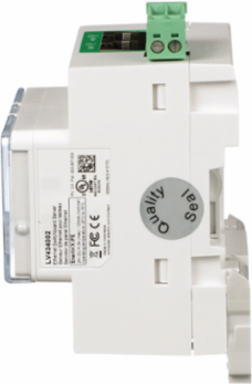

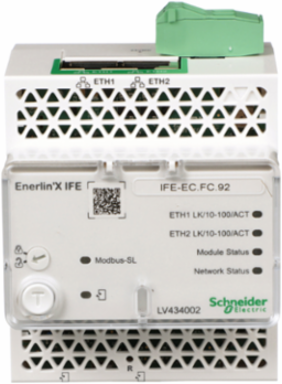

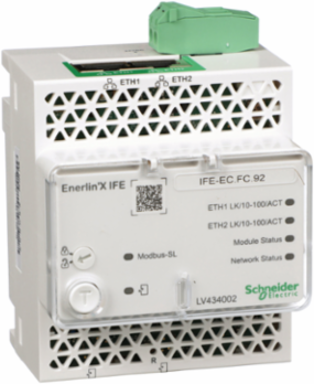

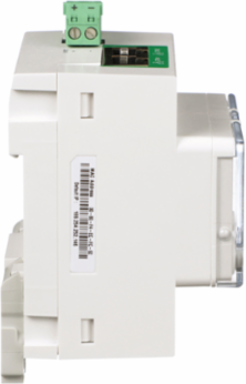

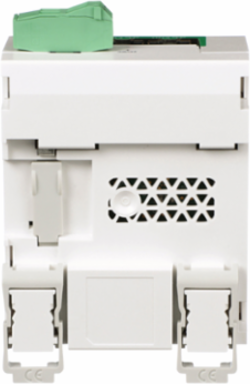

Schneider Electric LV434002 IFE Ethernet Switchboard Server, IP4X, 72mm Width, 182.5g Weight

MPN: LV434002
PPN: SCH-LV434002

$4160.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This IFE switchboard server is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to one or several Masterpact, Compact or PowerPact circuit breakers. It incorporates a Modbus gateway. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE switchboard server is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE switchboard server is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE switchboard server firmware can be updated using EcoStruxure Power Commission software.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Argentina, Brazil, China, France, Indonesia, Mexico, Sweden, Singapore, United States

Depth	71 mm

Communications & Management Attributes

Communication Network Type	Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45, Universal Logic Plug 2-port RJ45, Modbus TCP/IP, Modbus TCP master 9.6...38.4 kbauds

Communication Gateway	Ethernet TCP/IP to Modbus

Complementary Attributes

Maximum Supply Current	3 A

Important Information Attributes

Persona Type Ids	PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Flame Retardance	V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11
Certificate Agency	CE, GOST, cULus, FCC
Carbon Footprint Of The Distribution Phase [A4]	0.04079, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.11593, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	103 kg CO2 eq., 103.4
Local Publishable Date	2025-07-10
Stocking Flag	Y
Device Type	Relay, Control & Measurement - gateway
Traceability	Yes
Average Life Duration	15 year(s)
Use Carbon Footprint	103.4
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2305024EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1920
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	3
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	by software
Device Short Name	IFE
Mounting Mode	by clips
Product Availability	Stock - Normally stocked in distribution facility
Range	Enerlin'X
Shock Resistance	1000 m/s²
Sustainable Packaging	No
Vibration Frequency	5-8.4 Hz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	This is an Ethernet gateway module with dual Ethernet ports with 10/100Mbps bit rate and able to handle 8 Modbus client connections to monitor, control and configure LV range of breaker systems during 10 years
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	252.288
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	105 mm
[Us] Rated Supply Voltage	24 V DC - 20...10 %
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	257.700 g
Warranty (In Months)	18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]	103.27
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]	103.4
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]	1.204
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	2.0542
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]	1113.6
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	82.007
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]	6.5973
Materials For Recycling (Kg) Installation [A5]	0.065
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	4.1192
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]	1.0072
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	4.1857
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	206.24
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	3140.3
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	6.6763
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	4.1152
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-0.0705
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]	1.204
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	2.0542
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	6.4438
Customs Code	8517620090

Persona Type Names	Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Range Of Product	ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200
Accessory / Separate Part Category	spare part Compact NS630b...1600, spare part Compact NS1600b...3200
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.4 kg CO2 eq., 0.42684
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	17 kg CO2 eq., 16.759
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	DPIBS
Manufacturing Carbon Footprint	16.759
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	3
Function Option	Standard
Compatibility Code	IFE master
Current Consumption	120 mA
Energy Efficiency Optimized	False
Mounting Support	35 mm DIN rail
Product Or Component Type	interface module
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	121 kg CO2 eq.
Web Server	embedded HTTP server
Pep Code	ENVPEP2305024EN
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	1
Width Nominal	72 mm
Connections - Terminals	RJ45 connector
Nbr. Of Units In Pkg.	1
Take-back	No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]	16.753
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]	16.759
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	199.57
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	2634.4
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]	226.58
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]	114.01
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]	2.0574
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]	153.75
Net Use Of Fresh Water (M3) End Of Life [C1-c4]	1.522
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	14.878
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	4.1857
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]	-0.0705
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]	1.2921
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	2.3081
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	505.88
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	4.1857
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	195.38
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	2634.4
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	-0.2596
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	505.88
Other Technical Guide Name	ESXP1G003EN

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Circularity Profile	ENVEOLI2305024EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	connectors IP2Xother parts IP3xfront panel IP4X
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-85 %
Pep Verification Date	2023-12-03
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-20-70 °C, -20-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	120.74256
Environmental Disclosure	ENVPEP2305024EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2305024EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
