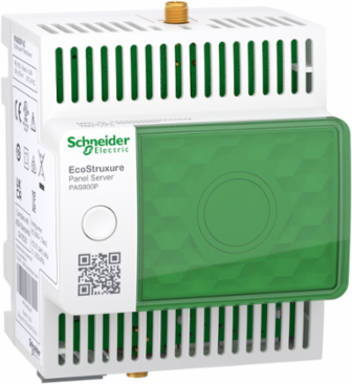

Schneider Electric PAS800P EcoStruxure Panel Server Gateway, 71.8mm Width, PoE, -25 C to 70 C
- MPN: PAS800P
- PPN: SCH-PAS800P
CAD
$2463.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcoStruxure Panel Server Gateway, 71.8mm Width, PoE, -25 C to 70 C
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, India, Singapore, United States

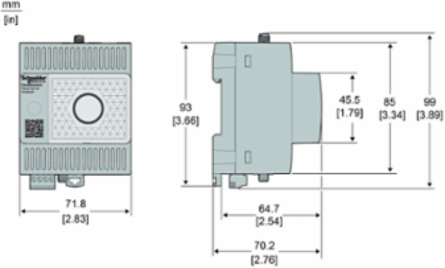

Depth70.2 mm
Communications & Management Attributes
- Communication Gateway
- Ethernet TCP/IP to wireless devices, Ethernet/serial
- Communication Service
- Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, web server (energy & operation efficiency), RSTP
Communication Port ProtocolModbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
Communication Port Support2 RJ45 ETHERNETscrew terminal block RS485
Physical Attributes
- Wire Stripping Length
- power supply: 7 mm, communication: 7 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- historical dashbaording and trending, 3 years data logs
- Function Available
- embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, embedded data logger, Event Logger, energy management, with integrated web server, firmware update, configurable event, backup/restore configuration, CSV export
- Time Synchronisation Protocol
- NTP, SNTP
- Web Services
- HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON), alarm notification by e-mail
- Connections - Terminals
- communication screw terminal block bottom) 0.14-1.5 mm², power supply screw terminal block top) 1.5-2.5 mm²
- Carbon Footprint Of The Distribution Phase [A4]
- 0.17083105585513472, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.1556383595830437
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 111 kg CO2 eq., 111.47919891639178
- Local Data Status
- Publishable
- Pre Comm Date
- 2022-04-13
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - gateway
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 2
- Function Option
- Standard
- Data Retention Time
- 3 month(s)
- Energy Efficiency Optimized
- False

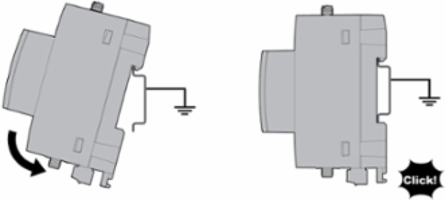

- Mounting Support
- DIN rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- gateway
- Range
- EcoStruxure
- Software Version
- v6.3.4
- Tightening Torque
- communication: 0.25-0.25 N.mpower supply: 0.6-0.6 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2025-04
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 227.76
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 93 mm
- [Us] Rated Supply Voltage
- PoE
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationgateway & energy server, data logger
Realtime Clockwith RTC-battery set, with user calibration
Topologyseparated Ethernet network, switched Ethernet network
Certificate AgencyCE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10
Number Of Server Device(S)32 Modbus RTU product(s)128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed85 wireless (IEEE 802.15.4) product(s) - depending on configuration
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6132170893825881, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 21.022871352936843
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, ESXP1G003EN
Local Publishable Date2025-07-09
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2008001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2429
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NamePAS800P
Mounting Modeclip-on
Number Of Devices64 Modbus TCP/IP
Product NamePanel Server Advanced
Product Specific ApplicationWireless Schneider Electric devices ecosystem
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint133 kg CO2 eq.
Pep CodeENVPEP2008001EN
Pep Verification Date2026-03-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %1
Width Nominal72 mm
Halogen-free StatusHalogen free plastic parts and cables product
Package Weight(Lbs)276 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP2008001EN
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- wireless access point
- Relative Humidity
- 0-93 %
- Pep Verification Date
- 2026-03-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude< 6561.68 ft (2000 m), < 6561.68 ft (2000 m)
Halogene PerformanceHalogen free plastic parts & cables product
China Rohs RegulationX
Carbon Footprint133.4417567741494
Circularity ProfileENVEOLI2008001EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 front face)IP20 casing)
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2008001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- gateway
ETIM
- ETIM 8
- EC001099
ETIM 9EC001099
Input Attributes
- Number Of Inputs
- 0-0
Batteries & Runtime Attributes
- Removable Battery
- No
