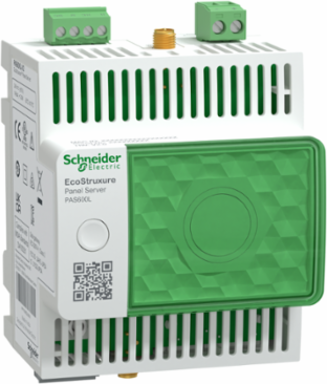

Schneider Electric PAS600L EcoStruxure Universal Panel Server Gateway, 24VDC, IP40, 72mm Width

MPN: PAS600L
PPN: SCH-PAS600L
UNSPSC: 43222605

$911.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

EcoStruxure Universal Panel Server Gateway, 24VDC, IP40, 72mm Width

Features

Easy integration of wireless smart IoT devices with edge control software or cloud applications
Easy connection of Modbus/RS485 and Modbus/TCP devices with monitoring software or cloud advisors
Reduced footprint with all-in-one device connecting Modbus/RS485, Modbus/TCP and wireless devices
Easy configuration with embedded web pages
Foster system integration with EcoStruxure Power Commission reports and configuration export
Operation efficiency with user-friendly web pages for measurement and alarm monitoring
Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle
Simple system troubleshooting with advanced diagnostic informations and logs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, India, Mexico, Singapore, United States

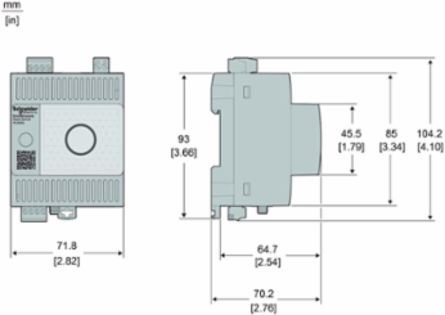

Depth	70.2 mm

Weight	245 g

Communications & Management Attributes

Communication Gateway	Ethernet TCP/IP to wireless devices, Ethernet/serial
Communication Port Protocol	Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP
Communication Port Support	2 RJ45 ETHERNETscrew terminal block RS485

Communication Network Type	HW V2: Wi-Fi infrastructure5 GHz, HW V2: Wi-Fi infrastructure2.4 GHz, HW V1: Wi-Fi infrastructure2.4 GHzEthernet 10/100BASE-T, Wi-Fi access point2.4 GHzwireless IEEE 802.15.4Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s
Communication Service	Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, RSTP

Physical Attributes

Wire Stripping Length	power supply: 7 mm, communication: 7 mm, discrete I/O: 7 mm

Complementary Attributes

Maximum Power Consumption In W	HW V2: 3.5 W 24 VHW V1: 3 W 24 V

Us Rated Supply Voltage	24 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Connector Type	HW V2: connector(s)1 x RP-SMA Wi-Fi for antenna bottomHW V2: connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top, HW V1: connector(s)1 x RP-SMA Wi-Fi for antenna bottom
Memory Capacity	HW V2: 32 GB eMMC, HW V1: 512 MB NAND
Realtime Clock	with RTC-battery set, with user calibration
Time Synchronisation Protocol	NTP, SNTP
Web Services	HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON)
Number Of Server Device S	32 Modbus RTU product(s)128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed85 wireless (IEEE 802.15.4) product(s) - depending on configuration
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5443412568794713, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	19 kg CO2 eq., 18.66160681691857
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	DPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2008001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2348
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Data Retention Time	1 month(s)
Device Short Name	PAS600L
Mounting Mode	clip-on
Number Of Devices	64 Modbus TCP/IP
Product Name	Panel Server Universal
Product Specific Application	Wireless Schneider Electric devices ecosystem
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2025-04
Height Nominal	93 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts and cables product
Functional Unit Description	The PAS800 collects and transmits energy and power‑related data from connected wired and wireless IoT devices through Ethernet, Wi‑Fi,Wireless IEEE 802.15.4, and Modbus communication interfaces, with a capacity for up to 64 Modbus devices. & 10It provides real‑time monitoring, diagnostics, and analytics via embedded web pages and onboard processing with data logging capability according to the reference usage scenario and during a reference service life of 10 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	227.76

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Function Available	embedded web page for configuration and upgrade, diagnosis capabilities, diagnostic report, diagnostics on communication, energy management, with integrated web server, firmware update, backup/restore configuration, configurable event
Number Of Connectors	HW V2: 2 screw connector for Wi-Fi and IEEE 802.15.4, HW V1: 1 screw connector for Wi-Fi
Tightening Torque	discrete I/O: 0.25-0.25 N.mpower supply: 0.6-0.6 N.m, communication: 0.25-0.25 N.m
Topology	separated Ethernet network, switched Ethernet network
Certificate Agency	CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10
Carbon Footprint Of The Distribution Phase A4	0.15164350972647828, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.1381572394849482
Carbon Footprint Of The Use Phase B2 B3 B4 B6	111 kg CO2 eq., 111.47919891639178
Local Publishable Date	2025-08-08
Device Type	Relay, Control & Measurement - gateway
Traceability	Yes
Average Life Duration	10 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	Yes
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Standard
Data Recording	real time data monitoring
Device Application	gateway
Energy Efficiency Optimized	False

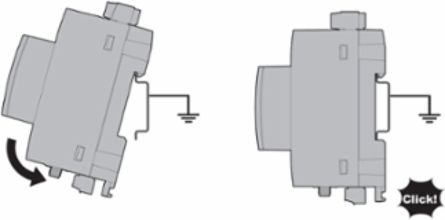

Mounting Support	DIN rail
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	gateway
Range	EcoStruxure
Software Version	v6.3.4
Total Lifecycle Carbon Footprint	131 kg CO2 eq.
Connections Terminals	discrete I/O screw terminal block top) 0.14-1.5 mm²power supply screw terminal block top) 1.5-2.5 mm²communication screw terminal block bottom) 0.14-1.5 mm²
Data Source	extrapolated product
Width Nominal	72 mm
Customs Code	8517620020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	1

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m, -25-60 °C 2000...4000 m-25-70 °C < 6561.68 ft (2000 m), -25-70 °C < 6561.68 ft (2000 m), -25-60 °C 2000...4000 m
Operating Altitude	< 5000 m, < 5000 m
Halogene Performance	Halogen free plastic parts & cables product
China Rohs Regulation	X
Circularity Profile	ENVEOLI2008001EN
Environmental Disclosure	ENVPEP2008001EN
Halogen Content Performance	Halogen free plastic parts & cables product
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	wireless access point
Relative Humidity	5-95 %
Pep Verification Date	2026-03-24
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	130.97494773940124
Derating Factor	with temperature derating of -1 °C per 200 m 4000...5000 m
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP40 front face)IP20 casing)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2008001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
