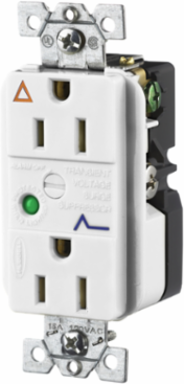

Hubbell Wiring Device-Kellems IG5262WSA Duplex Receptacle 15A 125V with Light & Alarm, 5-15R, White
- MPN: IG5262WSA
- UPC: 783585060675
- PPN: HBL-IG5262WSA
- UNSPSC: 39121610
CAD
$141.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
IG TVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, White
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- IG5262WSA AutoCAD Drawing
- General Literature Asset 3 Display Text
- Residential Product Guide
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- Duplex
- Voltage Rating Description
- 125 V
- Connectivity
- Terminal Screws
- Nema Rating
- 5-15R
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG5262WS
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 4.200x11.200x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060675
- Case Weight
- 16.700 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextSpikeShield® Surge Protective Devices
Case - Total Units50 EA
ColorWhite
Width2.200 in
PerformanceElectrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
General Literature Asset 1 Display TextResidential Catalog
Display SizeStandard
StyleIsolated Ground
Description - InvoiceDUP SPD RCPT, IG, 15A 125V, 5-15R, WH
Harmonization Code8536309999
MSDS FlagNo
Sub Class CodeA44A420
Current Rating15 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
NAICS Code335999E509
Certifications
- EU RoHS Indicator
- No
