Schneider Electric ZBY9W2M630 Harmony 60 mm Red LED Emergency Stop Legend Ring
- MPN: ZBY9W2M630
- PPN: SCH-ZBY9W2M630
CAD
$61.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

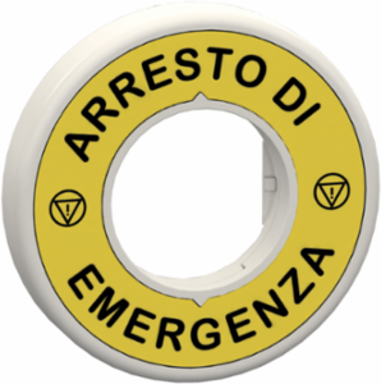

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Indonesia
Physical Attributes
- Light Source Color
- red
Important Information Attributes
- Compatibility Code
- XB4, XB5
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02630453544813227, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.002115302477519544, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 97 kg CO2 eq., 97.0659581253825
- Local Publishable Date
- 2026-01-12
- Future Imap
- 32.46
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Bulb Base
- integral LED
- Electrical Insulation Class
- class II IEC 61140
- Label Dimensions
- Ø 60 mm
- Marking
- black ARRESTO EMERGENZA yellow
- Operator Additional Information
- with illuminated ring
- Product Or Component Type
- illuminated marked legend ring
- Range Of Product
- Harmony
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage Limits
- 195-264 V AC
- Total Lifecycle Carbon Footprint
- 98 kg CO2 eq.
- Light Source Color
- red
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Illuminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential, In %
- 3
- Width Nominal
- 9.3 mm
- Accessory / Separate Part Destination
- emergency stop mushroom head push-button
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Resistance To Electrostatic Discharge4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
[Us] Rated Supply Voltage230 V, 230...240 V AC 50/60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.043119929873282635
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3663686578379308
Local Data StatusPublishable
Return IndicatorY
Future Msrp42.03
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Current Consumption14 mA
Electromagnetic Emissionclass B IEC 55011
Light Sourceprotected LED
Materialplastic
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv6.3.0.1-4
Sustainable PackagingNo
User LanguageSpanish
Pep CodeENVPEP2506032EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal60 mm
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Package Weight(Lbs)21.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506032EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint97.50386655101936
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2506032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated marked legend ring
Range Of ProductHarmony
ETIM
- ETIM 8
- EC000624
ETIM 9EC000624
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
