Schneider Electric XB5AS84W3B5 Illuminated emergency stop, Harmony XB5, plastic, 22mm, trigger latching turn to release, white red LED, 24V AC DC, 1 NO + 1 NC
Schneider Electric XB5AS84W3B5 Illuminated emergency stop, Harmony XB5, plastic, 22mm, trigger latching turn to release, white red LED, 24V AC DC, 1 NO + 1 NC
- MPN: XB5AS84W3B5
- PPN: SCH-XB5AS84W3B5
- UNSPSC: 39121545
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$131.11/ EA
Description

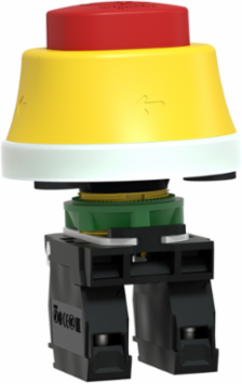

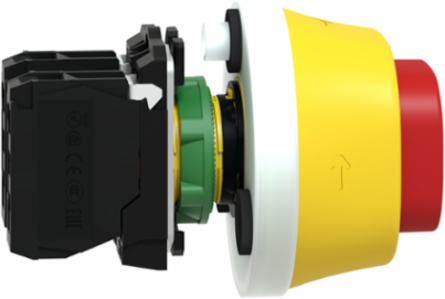

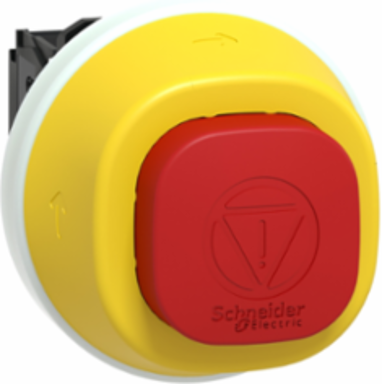

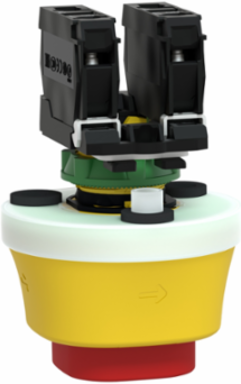

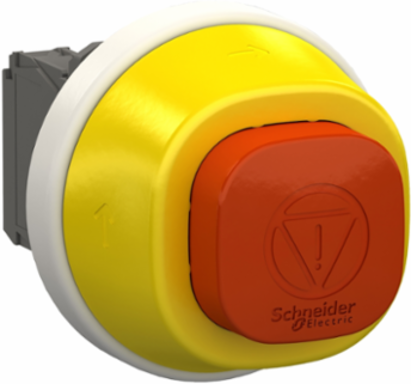

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Features
- Wide modular range to suit machines and operator safety.
- Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
- Illuminated types to improve operator efficiency by reducing production downtime.
- Ergonomic design for emergency actuation in several environments
- Large set of accessories : circular legends, illuminated legend rings for harsh environments.
- High performance: International standards & certifications (IP69K, IP69, IP67, IP66, Type 13, Type 12, Type 4, Type 4X)
- Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Specifications
Physical Attributes
- Light Source Color
- white, red
Cap Operator Or Lens Colorred
Conformance Attributes
- Product Certifications
- UL Listed, CSA, EAC, CCC
StandardsIEC 60947-5-1, IEC 60947-5-4, UL 508, ISO 21702, ISO 22196:2011, UL 60947-5-5, IEC 60947-5-5, NISD
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Operating Travel
- 1.5 mm NC changing electrical state), 4.3 mm total travel)
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Us Rated Supply Voltage2
- 24 V AC/DC 50/60 Hz, 24 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.17781189420335763
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.8 kg CO2 eq., 0.812282499208109
- Connections Terminals
- screw-clamp terminals, <= 2 x 1.5 mm² with or without cable end IEC 60947-1, screw-clamp terminals, >= 1 x 0.22 mm² with or without cable end IEC 60947-1
- Ie Rated Operational Current5
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 13 %
- Cap Operator Or Lens Color
- red
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Head Type
- standard
- Local Signalling
- red LED / white LED 24 V AC/DC

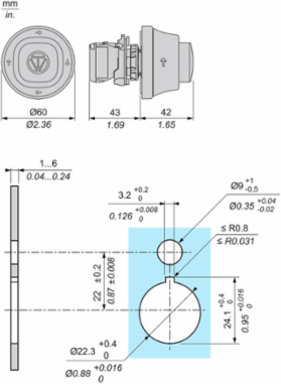

- Mounting Diameter
- 22 mm
- Package Weight Lbs
- 115.0 g
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Reset
- turn to release
- Returnability
- Yes
- Short Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- trigger action and mechanical latching
- Ith Conventional Free Air Thermal Current2
- 10 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage2
- 6 kV IEC 60947-1
- Medium Desc
- Illuminated emergency stop, Harmony XB5, plastic, 22mm, trigger latching turn to release, white red LED, 24V AC DC, 1 NO + 1 NC
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- XB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; APAC
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 600 V 3)IEC 60947-1
- Us Rated Supply Voltage5
- 24 V AC/DC 50/60 Hz
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Source Colorwhite, red
Product Or Component Typeemergency stop push-button, emergency switching off push-button
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm

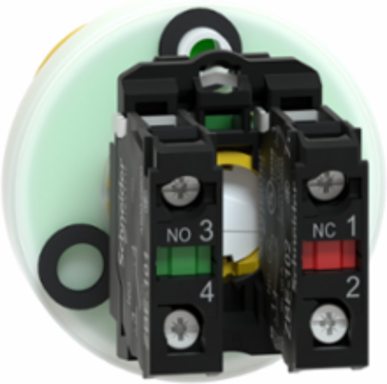

Terminals Description ISO N 1(1-2)NC, (3-4)NO, (1-2)NC, (3-4)NO
Ie Rated Operational Current23 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase A40.013168191637630661, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.035125384859043395, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.060358
Connections Terminals3screw-clamp terminals, <= 2 x 1.5 mm² with or without cable end IEC 60947-1, screw-clamp terminals, >= 1 x 0.22 mm² with or without cable end IEC 60947-1
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Percentage Of Recycled Metal Content22 %
Bezel Materialplastic
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Electrical Insulation Classclass II IEC 61140
Fixing Modefixing nut +/- 0.2)
Light Sourceprotected LED
Mechanical Durability300000 cycles
Operator Profilered square 32 mm, IEC
Positive Openingwith NC contact IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2600 V 3)IEC 60947-1
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Stocking FlagN
Pep CodeENVPEP2308012_V1
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; APAC
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; APAC
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage56 kV IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2308012EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2308012_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level22 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.0987459699081406
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2308012_V1
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency stop push-button, emergency switching off push-button
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 85 mm
Overview Attributes
- Device Presentation
- complete product
