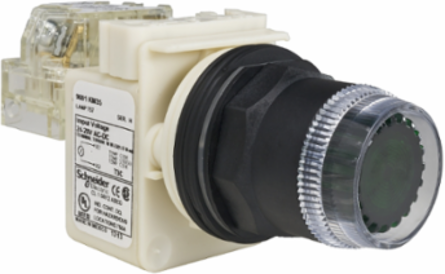

Square D 9001SK1L38LGGH5 Illuminated Push Button, 30mm, Green LED, IP66, 120V
Square D 9001SK1L38LGGH5 Illuminated Push Button, 30mm, Green LED, IP66, 120V
- MPN: 9001SK1L38LGGH5
- PPN: SCH-9001SK1L38LGGH5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$242.65/ EA
Description
This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel, is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- [Us] Rated Supply Voltage
- 120 V
- [Icm] Rated Short-Circuit Making Capacity
- 0.1 kA 240 V DC-13, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13
- Light Source
- green LED
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Contact Operation
- standard
- Contacts Material
- silver alloy contacts
- Positive Opening
- without
- Operator Profile
- flush
- Operating Position
- any position
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- Net Weight
- 0.181 kg
- Bulb Base
- BA 9s
[Us] Rated Supply Voltage120 V AC/DC
Contacts Type And Composition1 NO
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Bezel Materialplastic
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Light Source Colourgreen
Mechanical Durability5000000 cycles
Mounting Diameter30 mm
Type Of Operatorspring return
[Ith] Conventional Free Air Thermal Current10 A
Cap/Operator Or Lens Colourgreen
Shape Of Screw Headcross slotted
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Device Presentationcomplete product
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsJIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121005EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Operator Additional Information
- plastic guard
- Operator Profile
- green flush, unmarked
- Type Of Operator
- spring return
- Device Short Name
- 9001SK
Range Of ProductHarmony 9001SK
Light Block Supplydirect 120 V AC/DC
Product Or Component Typeilluminated push-button
