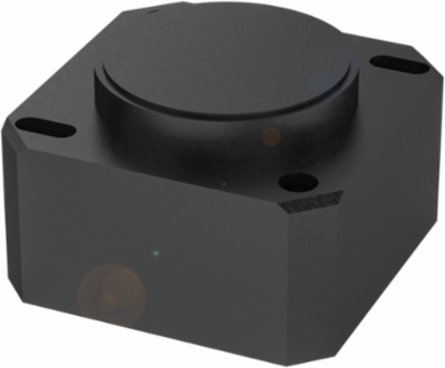

Balluff BSI Q41K0-XB-MXS090-S92 Inclination Sensor, 1 Axis, -90...90° Range, IP67/IP69, Analog Output
Balluff BSI Q41K0-XB-MXS090-S92 Inclination Sensor, 1 Axis, -90...90° Range, IP67/IP69, Analog Output
- MPN: BSI Q41K0-XB-MXS090-S92
- PPN: BAL-BSI000R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$428.72/ EA
Description
Designed for precision and durability, the inclination sensor from Balluff offers an impressive measuring range of -90 to 90 degrees, making it an ideal choice for various applications that require accurate angular position detection. With an analog output of 4-20 mA and a robust IP67/IP69 rating, this sensor is built to withstand challenging environments while maintaining high performance. The device features a resolution of ≤ 0.09° and an accuracy of ±1.0°, ensuring reliable measurements across a wide ambient temperature range of -40 to 80 °C. Its compact plastic housing and M12x1 connector facilitate easy integration into existing systems, making it a versatile solution for both industrial and commercial applications.
Specifications
Specifications
- Country of Origin
- Netherlands
- Measuring axes
- 1
- Operating voltage Ub
- 10...30 VDC
- Resolution
- ≤ 0.09 °
- Connection
- Connector, M12x1
- Ambient temperature
- -40...80 °C
- Approval/Conformity
- CE; cULus; WEEE
Measuring principleMEMS
Measuring range-90...90°
InterfaceAnalog, current 4…20 mA
Accuracy±1.0°
Housing materialPlastic
IP rating per IEC 60529IP67; IP69
Additional textCan be centered over 360° in the vertical position
