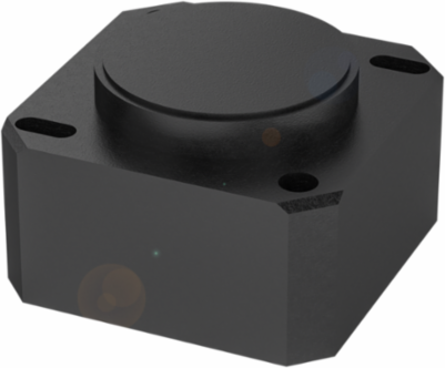

Balluff BSI Q41K0-XA-MXS090-S92 Inclination Sensor, 1 Axis, ±1.0° Accuracy, IP67, -90...90° Range
Balluff BSI Q41K0-XA-MXS090-S92 Inclination Sensor, 1 Axis, ±1.0° Accuracy, IP67, -90...90° Range
- MPN: BSI Q41K0-XA-MXS090-S92
- PPN: BAL-BSI000U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$428.72/ EA
Description
Designed for precision and reliability, the Balluff inclination sensor offers exceptional performance in various industrial applications. With a measuring range of -90 to 90 degrees and an accuracy of ±1.0°, this sensor utilizes MEMS technology to deliver precise readings even in challenging environments. Its robust IP67 and IP69 ratings ensure protection against dust and water ingress, making it suitable for harsh conditions. Operating within a wide temperature range of -40 to 80 °C, the sensor is built to withstand extreme environments while maintaining high accuracy and resolution of up to 0.09°. The compact plastic housing and M12x1 connector facilitate easy installation, allowing for seamless integration into your systems.
Specifications
Specifications
- Country of Origin
- Netherlands
- Measuring axes
- 1
- Operating voltage Ub
- 12...30 VDC
- Resolution
- ≤ 0.09 °
- Connection
- Connector, M12x1
- Ambient temperature
- -40...80 °C
- Approval/Conformity
- CE; cULus; WEEE
Measuring principleMEMS
Measuring range-90...90°
InterfaceAnalog, voltage 0…10 V
Accuracy±1.0°
Housing materialPlastic
IP rating per IEC 60529IP67; IP69
Additional textCan be centered over 360° in the vertical position
