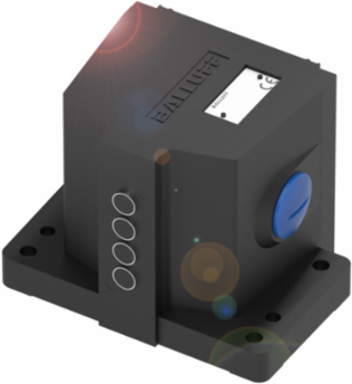

Balluff BNS 816-B02-PA-12-602-11 Inductive Limit Switch, 120 x 70 x 87 mm, 24 VDC, IP67


Balluff BNS 816-B02-PA-12-602-11 Inductive Limit Switch, 120 x 70 x 87 mm, 24 VDC, IP67
- MPN: BNS 816-B02-PA-12-602-11
- PPN: BAL-BNS038F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$819.48/ EA
Description
Inductive Limit Switch, 120 x 70 x 87 mm, 24 VDC, IP67
Specifications
Specifications
- Country of Origin
- China
- Housing material
- Aluminum, Anodized
- Operating principle
- 1-2. Switch position: Inductive
- Switching frequency
- 1-2. Switch position: 1500 Hz
- Rated operating voltage Ue
- 1-2. Switch position: 24 VDC
- Switch position spacing
- 12 mm
- Ambient temperature
- -25...70 °C
- Approval/Conformity
- CE; UKCA; WEEE
Dimension120 x 70 x 87 mm
VersionInductive
Range2 mm
Continuous current1-2. Switch position: 0.2 A
InstallationVertical
Connection type1-2. Switch position: Screw terminal
IP rating per IEC 60529IP67
