Balluff

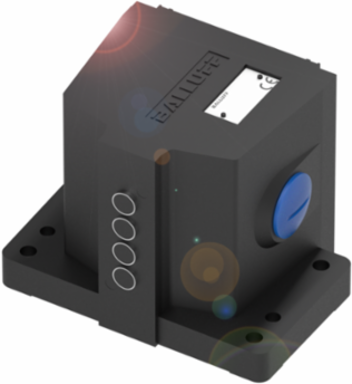

Balluff BNS 816-B05-PA-12-602-11 Inductive multiple position limit switches - BNS03A3

Inductive multiple position limit switches - BNS03A3
  • MPN: BNS 816-B05-PA-12-602-11
  • PPN: BAL-BNS03A3

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1716.61/ EA

Description

Inductive multiple position limit switches - BNS03A3

Specifications

Specifications

Country of Origin
China
Housing material
Aluminum, Anodized
Operating principle
1-5. Switch position: Inductive
Switching frequency
1-5. Switch position: 1500 Hz
Rated operating voltage Ue
1-5. Switch position: 24 VDC
Switch position spacing
12 mm
Ambient temperature
-25...70 °C
Approval/Conformity
CE; UKCA; WEEE
Dimension120 x 105 x 87 mm
VersionInductive
Range2 mm
Continuous current1-5. Switch position: 0.2 A
InstallationVertical
Connection type1-5. Switch position: Screw terminal
IP rating per IEC 60529IP67
