Balluff

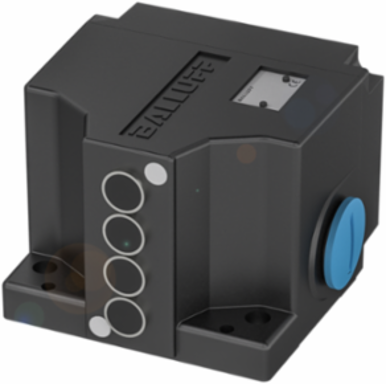

Balluff BNS 816-B04-PA-12-610-11 Inductive Limit Switch, 79 x 60 x 77.5 mm, IP67, 24 VDC

Inductive Limit Switch, 79 x 60 x 77.5 mm, IP67, 24 VDC
  • MPN: BNS 816-B04-PA-12-610-11
  • PPN: BAL-BNS03H5

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1569.03/ EA

Description

Inductive Limit Switch, 79 x 60 x 77.5 mm, IP67, 24 VDC

Specifications

Specifications

Country of Origin
China
Housing material
Aluminum, Anodized
Operating principle
1-4. Switch position: Inductive
Switching frequency
1-4. Switch position: 1500 Hz
Rated operating voltage Ue
1-4. Switch position: 24 VDC
Switch position spacing
12 mm
Ambient temperature
-25...70 °C
Approval/Conformity
CE; UKCA; WEEE
Dimension79 x 60 x 77.5 mm
VersionInductive
Range2 mm
Continuous current1-4. Switch position: 0.2 A
InstallationVertical
Connection type1-4. Switch position: Screw terminal
IP rating per IEC 60529IP67

Downloads
