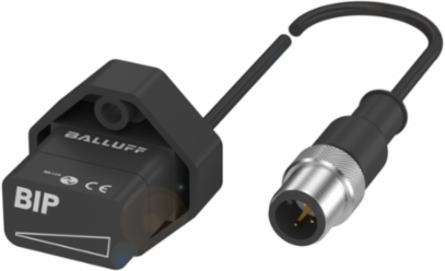

Balluff BIP LD2-T014-01-EP01-S4 Inductive positioning systems BIP LD2-T014-01-EP01-S4
- MPN: BIP LD2-T014-01-EP01-S4
- PPN: BAL-BIP000F
CAD
$572.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our sensors with the BIP inductive positioning system detect the position of metallic objects. They ensure the continuous positioning of the objects over the whole measurement range. The most important features: flexibly adjustable measurement range, application-oriented repeatability and linearity, multifaceted design concept, analog and digital interfaces.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 35 x 35 x 31 mm
- Connection
- Cable with connector, M12x1-Male, 3-pin, 1.00 m, PUR
- Measuring range
- 0-14 mm
- Repeat accuracy
- ±80.0 µm
- Operating voltage Ub
- 18-30 VDC
- IP rating
- IP67
Styleblock style
Housing materialPA
InterfaceIO-Link 1.0
Non-linearity max.±250 µm
Ambient temperature-25-70 °C
Approval/ConformityCE, cURus, EAC, WEEE
