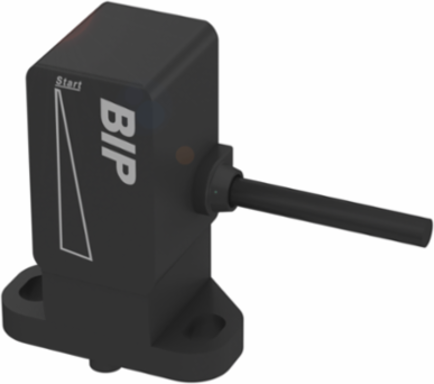

Balluff BIP LD2-T017-04-BP01 Inductive positioning systems BIP LD2-T017-04-BP01
- MPN: BIP LD2-T017-04-BP01
- PPN: BAL-BIP001N
CAD
$469.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our sensors with the BIP inductive positioning system detect the position of metallic objects. They ensure the continuous positioning of the objects over the whole measurement range. The most important features: flexibly adjustable measurement range, application-oriented repeatability and linearity, multifaceted design concept, analog and digital interfaces.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 30 x 18 x 40.5 mm |
|---|---|
| Connection | Cable, 1 m, PUR |
| Measuring range | 0-17 mm |
| Repeat accuracy | ±40 µm |
| Operating voltage Ub | 18-30 VDC |
| IP rating | IP67 |
| Style | block style |
|---|---|
| Housing material | PA |
| Interface | IO-Link 1.1 |
| Non-linearity max. | ±250 µm |
| Ambient temperature | -25-70 °C |
| Approval/Conformity | CE, cURus, EAC, WEEE |
