Balluff

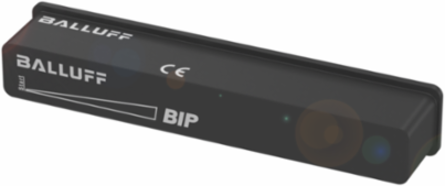

Balluff BIP ED2-B103-03-S75 Inductive Positioning System, 0-103 mm Measuring Range, IP67, PBT Housing

Inductive Positioning System, 0-103 mm Measuring Range, IP67, PBT Housing
  • MPN: BIP ED2-B103-03-S75
  • PPN: BAL-BIP000E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$512.80/ EA

Description

Inductive Positioning System, 0-103 mm Measuring Range, IP67, PBT Housing

Specifications

Specifications

Country of Origin
Hungary
Style
block style
Housing material
PBT
Analog output
Analog, voltage 0...10 V; Analog, current 4...20 mA
Repeat accuracy
±80 µm
Operating voltage Ub
16...30 VDC
IP rating per IEC 60529
IP67
Dimension121 x 21 x 22 mm
ConnectionConnector, M8x1-Male, 4-pin
Measuring range0...103 mm
Output characteristicAdjustable
Non-linearity max.±300 µm
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cURus; WEEE
