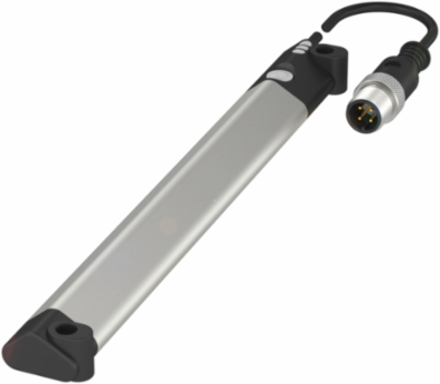

Balluff BMP 01-ZLZPP21A-0128-00-P00,5-S4 Magnetic Field Positioning System, 128 mm Measuring Range, ±100 µm Accuracy
Balluff BMP 01-ZLZPP21A-0128-00-P00,5-S4 Magnetic Field Positioning System, 128 mm Measuring Range, ±100 µm Accuracy
- MPN: BMP 01-ZLZPP21A-0128-00-P00,5-S4
- PPN: BAL-BMP000Z
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$648.52/ EA
Specifications
Specifications
- Country of Origin
- China
- Dimension
- 17.5 x 9.6 x 138 mm
- Resolution
- ≤ 1 µm
- Non-linearity typ.
- ±250 µm
- Connection
- Cable with connector, M12x1-Male, 4-pin, 0.5 m, PUR
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- CE; UKCA; cULus; IO-Link; WEEE
Measuring range128 mm
InterfaceIO-Link 1.1
Repeat accuracy± 100 µm
Operating voltage Ub15...30 VDC
Housing materialPA 12; Aluminum
IP rating per IEC 60529IP67
