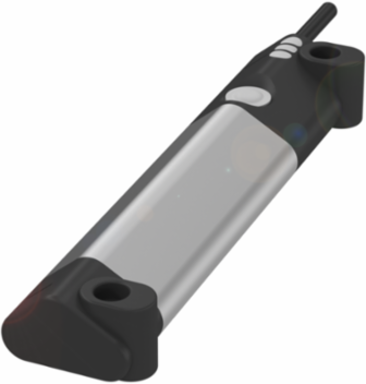

Balluff BMP 01-EL1PP21A-0064-00-P02 Magnetic Field Positioning System, 64 mm Measuring Range, IP67
- MPN: BMP 01-EL1PP21A-0064-00-P02
- PPN: BAL-BMP0006
CAD
$364.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Magnetic Field Positioning System, 64 mm Measuring Range, IP67
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 64 mm
- Non-linearity
- ±250 µm
- Operating Voltage
- 15...30 VDC
- Connection
- Cable, 2 m, PUR
- Housing Material
- PA 12; Aluminum
- Approval/Conformity
- CE; UKCA; cULus; IO-Link; WEEE
- Ambient Temperature
- -25...85 °C
Repeat Accuracy±100 µm
Resolution≤ 1 µm (IO-Link), 12 Bit (analog)
Analog OutputAnalog voltage/current selectable 0-10 V/4-20 mA
Dimension17.5 x 9.6 x 74 mm
IP RatingIP67
InterfaceIO-Link 1.1
Country of OriginChina
