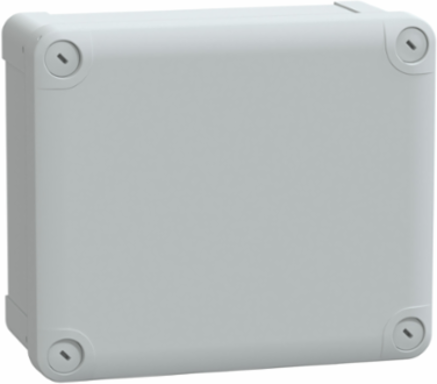

Schneider Electric NSYTBP19168 Industrial PC Box 175x150x80mm, IP66, IK08, Polycarbonate, Gray RAL 7035
Schneider Electric NSYTBP19168 Industrial PC Box 175x150x80mm, IP66, IK08, Polycarbonate, Gray RAL 7035
- MPN: NSYTBP19168
- PPN: SCH-NSYTBP19168
- UNSPSC: 39121305
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$22.31/ EA
Description

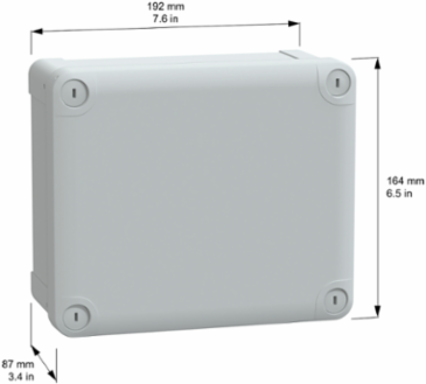

Thalassa TBP industrial PC box with opaque PC cover H20. Int is 175 x 150 x 80 mm. Ext is 193 x 164 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Features
- Sealed against dust and water (IP66)
- Robust and impact resistant (IK08)
- Wide usage temperature -25ºC to 80ºC
- Fire resistant up to 960ºC
- Class II electrical insulation to avoid risks
- Only a flat screwdriver needed to use
- Easy to install with 3 fixing ways
- Captive flat screws for secure fixing cover
- UL certified and suitable for outdoor use
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Internal Height
- 175 mm
Internal Depth80 mm
Internal Width150 mm
Conformance Attributes
- Product Certifications
- TÜV, UL
StandardsIEC 62208, UL 508 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

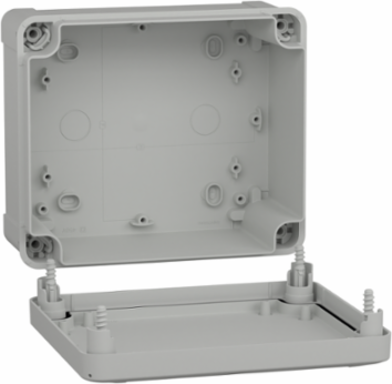

- 1 body, 1 cover, 4 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.7 kg CO2 eq., 0.6524033426222143
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 3 kg CO2 eq., 2.8665300402120404
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Cover Fixing
- plastic screws
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- captive screw flat outside sealed area
- Mounting Location
- outdoor (with canopy or shelter and anticondensation valve)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Medium Desc
- PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Hungary, HU
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.9986173098575433, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.09934642842033636, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2012016EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typeone piece moulded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Fire Resistance960 °C
Materialpolycarbonate
Package Weight Lbs503.000 g
Product Or Component Typeindustrial box
Removable Partscover by captive screws
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Stocking FlagY
Pep CodeENVPEP2012016EN
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Product NamePanelSeT TBP
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 4.616897121112134
- Ambient Air Temperature For Storage
- -15-60 °C
- Environmental Disclosure
- ENVPEP2012016EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2012016EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-80 °C
Circularity ProfileENVEOLI2012016EN
IP Degree Of ProtectionIP66 conforming to NEMA 4.4X
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- industrial box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 87 mm
