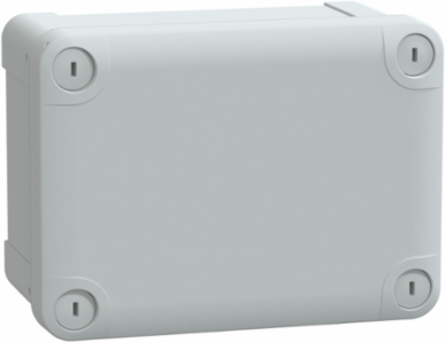

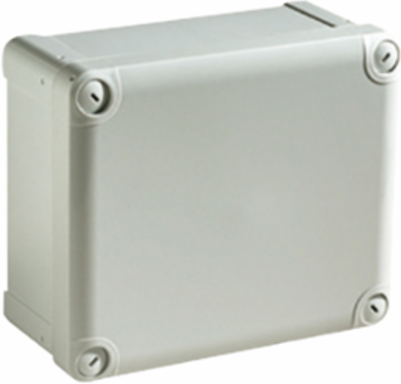

Schneider Electric NSYTBS16128 Thalassa TBS Industrial ABS Box, 121mm x 87mm x 164mm, IP66, IK07
Schneider Electric NSYTBS16128 Thalassa TBS Industrial ABS Box, 121mm x 87mm x 164mm, IP66, IK07
- MPN: NSYTBS16128
- PPN: SCH-NSYTBS16128
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$10.78/ EA
Description

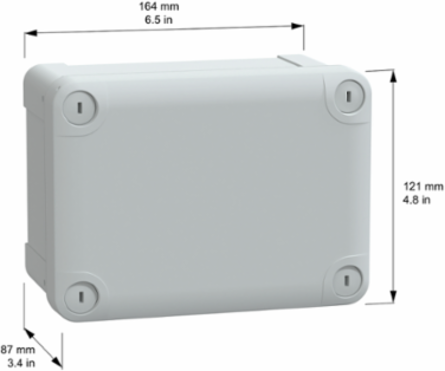

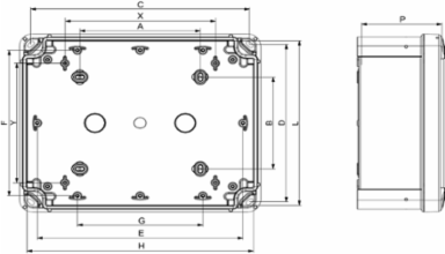

Thalassa TBS industrial ABS box with opaque cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Internal Height
- 150 mm
Internal Depth80 mm
Internal Width105 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover, 4 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.6 kg CO2 eq., 0.6374972133771925
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 1.1721854403302705
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Body Type
- one piece moulded
- Device Application
- multi-purpose
- Enclosure Mounting
- wall mounted
- Fire Resistance
- 650 °C IEC 60695-2-11
- Material
- ABS with 45% of post-industrial recycled content
- Product Or Component Type
- industrial box
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Warranty In Months
- 18
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Energy Model Manufacturing A1 A3 2
- Hungary, HU
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In 2
- 1
- Pn
- 1
- Width Nominal
- 121 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.6353032587562901, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.07481930582773091, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-09
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Plastic Content45 %
Cover Fixingplastic screws
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Typecaptive screw flat outside sealed area
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 2
Removable Partscover by captive screws
Software Versionv6.1
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Silicone FreeYes
Pep CodeENVPEP2312020EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Offer Owner Code190789
Height Nominal164 mm
Certificate AgencyTÜV
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Environmental Disclosure
- ENVPEP2312020EN
- Ip Degree Of Protection
- IP66 conforming to NEMA 4.4X
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint2.519805218291484
Ambient Air Temperature For Storage-15-40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2312020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Spain, France, Hungary
Depth87 mm
