Schneider Electric NSYTBS191210HT Thalassa TBS Industrial Box, 121x105x192mm, IP66, IK07, ABS Material
- MPN: NSYTBS191210HT
- PPN: SCH-NSYTBS191210HT
CAD
$19.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

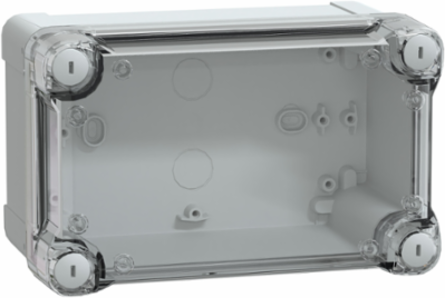

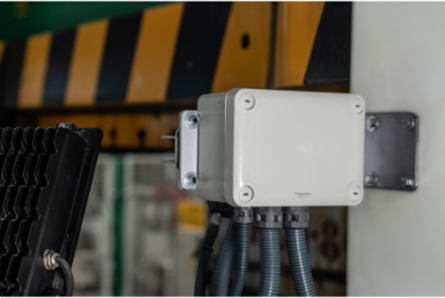

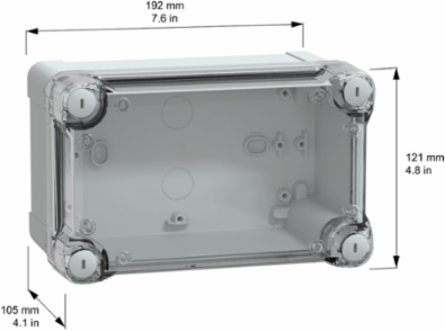

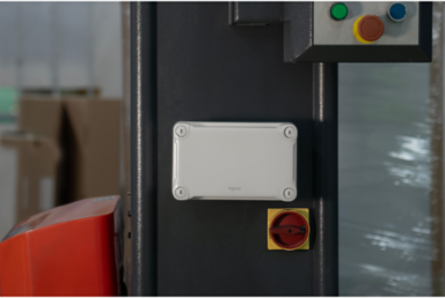

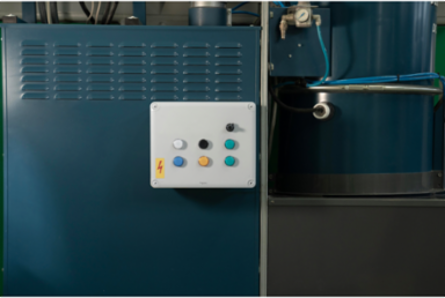

Designed for versatility and durability, this industrial box from Schneider Electric's Thalassa range is an essential solution for various applications. Measuring 121mm in width, 105mm in depth, and 192mm in height, it features a high transparent cover that allows for easy visibility of internal components while maintaining a robust structure with an IP66 rating, ensuring protection against dust and water ingress. Constructed from ABS material with 45% post-industrial recycled content, this enclosure not only meets environmental standards but also provides a fire resistance of up to 650 C, making it suitable for demanding environments. With its wall-mounted design and IK07 impact protection, this industrial box is engineered to withstand the rigors of industrial use while maintaining aesthetic appeal.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary, United States
Depth105 mm
Physical Attributes
- Color
- Gray RAL 7035), Transparent
- Internal Height
- 175 mm
Internal Depth100 mm
Internal Width105 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover4 cover screw
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8765586683936396
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.6117549804541218
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Body Type
- one piece moulded
- Device Application
- multi-purpose
- Enclosure Mounting
- wall mounted
- Fire Resistance
- 650 °C IEC 60695-2-11
- Material
- ABS with 45% of post-industrial recycled content
- Product Or Component Type
- industrial box
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Front Cover
- high transparent cover
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Hungary, HU
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 121 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 3925900000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.873541980789899, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10287654551313, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Plastic Content45 %
Cover Fixingplastic screws
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Typecaptive screw flat outside sealed area
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 2
Removable Partscover by captive screws
Software Versionv6.1
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Pep CodeENVPEP2312020EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal192 mm
Certificate AgencyTÜV
Package Weight(Lbs)440.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -15-40 °C, -15-40 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.4647321751507905
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312020EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2312020EN
Ip Degree Of ProtectionIP66 conforming to NEMA 4.4X
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
