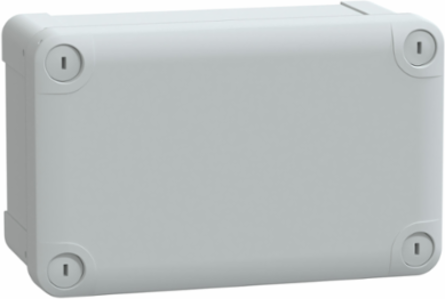

Schneider Electric NSYTBS19128 Thalassa TBS ABS Industrial Enclosure 121x87x192mm IP66 IK07

MPN: NSYTBS19128
PPN: SCH-NSYTBS19128

$11.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

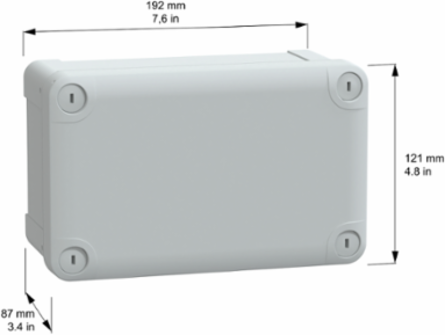

Thalassa TBS industrial ABS box with opaque cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, France, Hungary

Depth	87 mm

Physical Attributes

Color	Gray RAL 7035)
Internal Height	175 mm

Internal Depth	80 mm
Internal Width	105 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 body, 1 cover4 cover screw
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.7 kg CO2 eq., 0.6673798952542483
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.2271316328457518
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Body Type	one piece moulded
Device Application	multi-purpose
Enclosure Mounting	wall mounted
Fire Resistance	650 °C IEC 60695-2-11
Material	ABS with 45% of post-industrial recycled content
Product Or Component Type	industrial box
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Type Of Front Cover	low plain cover
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Hungary, HU
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	1
Width Nominal	121 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.6650830990104912, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0783264607884058, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2024-01-12
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1904
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Plastic Content	45 %
Cover Fixing	plastic screws
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	captive screw flat outside sealed area
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 2
Removable Parts	cover by captive screws
Software Version	v6.1
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Pep Code	ENVPEP2312020EN
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	192 mm
Certificate Agency	TÜV
Package Weight(Lbs)	335.000 g
Take-back	No
Customs Code	3925900000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-15-40 °C, -15-40 °C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP2312020EN
Ip Degree Of Protection	IP66 conforming to NEMA 4.4X
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-07-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	2.637921087898897
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2312020EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
