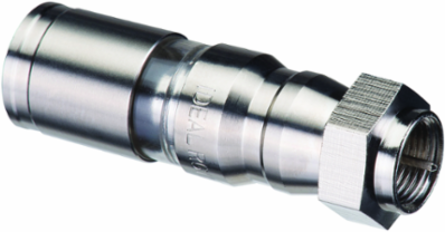

Ideal Industries 92-212 InSITE RG-11 Plenum F Compression Connector - 10 pk, 0-3 GHz, 7/16 Inch Nut Diameter

Installing one-piece compression RG-11 Plenum F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE™ Technology feature, now standard on all IDEAL RG-11 compression connectors, field termination of these blind entry connectors is simpler, faster, and now provides a higher performance connection for all video based applications.The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin before the connector is compressed.All IDEAL compression connectors require a 1/4” x 1/4” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.The connector has an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG-11 sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV and satellite trunk/distribution lines. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.
