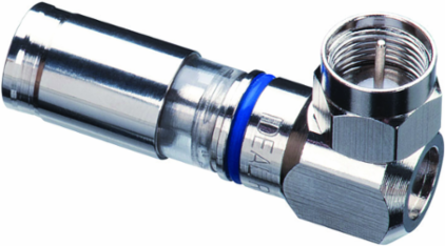

Ideal Industries 92-691 InSITE RTQ 90° RG-6 F Compression Connector, 0.168"-0.183" Dielectric Diameter, 5 Pack

Installing one-piece compression right angle F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE™ Technology feature, now standard on all IDEAL F right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all coax video applications.The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a 1/4” x 1/4” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.The IDEAL RTQ™ series of F connectors offer a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aides in cable retentionThe 90° compression connectors are the only IDEAL connectors that require the 30-793 compression tool to be adjusted.
