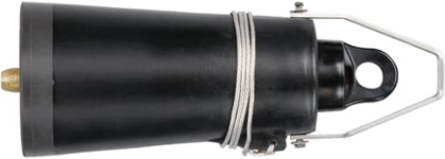

Thomas & Betts 274DRG INSUL CAP 25KV LB W/TP
- MPN: 274DRG
- UPC: 783786652792
- PPN: T-B-274DRG
- UNSPSC: 39121421
CAD
$753.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Insulated Cap with Ground Lead and Test Point, equipped with insulated cuff. #14 AWG Ground Lead. Brass Probe. 3.13 inch Diameter, 8.56 inch Length.
Specifications
Additional Information
- Application
- Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation. They are suitable for use on 25kV class loadbreak systems.
- Color
- Black
- Effective Date
- 19980108
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- 3.13 inch (79.4 mm) Diameter, 3.77 inch (95.8 mm) Length Bottom to Bushing Datum, 3.86 inch (98.0 mm) Top to Bushing Datum.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 kV
Brand / LabelElastimold
Current Rating200 A
IncludesInsulated Cap, Lubricant and Installation Instructions.
MaterialHousing - EPDM Rubber
Product TypeInsulated Cap
Special Functions25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection. Includes test point.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
