Dragon Tooth FPW58 INSUL PIERCING WASHER CU 5/8 STUD
Dragon Tooth FPW58 INSUL PIERCING WASHER CU 5/8 STUD
- MPN: FPW58
- UPC: 786210709987
- PPN: T-B-FPW58
- UNSPSC: 31161807
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.12/ EA
Description

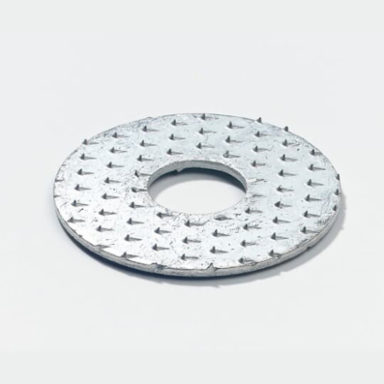

Insulation Piercing Washer, Outer Diameter 35.6mm (1.4 Inches), Inner Diameter 17.3mm (0.68 Inch), Stud Size 5/8 Inch, Copper Alloy, Tin Plated
Specifications
Additional Information
- Application
- Enables copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
- Effective Date
- 19890303
- Material
- Copper
- Product Name
- COPPER WASHER
- Special Functions
- Accommodates the difference in thermal expansion between copper and aluminum and enhances the efficiency of bolted grounding connections.
- Sub Brand / Label
- Dragon Tooth
- Surface Finishing
- Tin Plated
Brand / LabelSta-Kon
Inside Diameter0.68 in17.3 mm
Outside Diameter1.4 in35.6 mm
Product TypeTransition Washer
StandardsUL E9809
Suitable For5/8 Inch
Thickness0.035 in0.89 mm
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)2885 >> Flat washers
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
