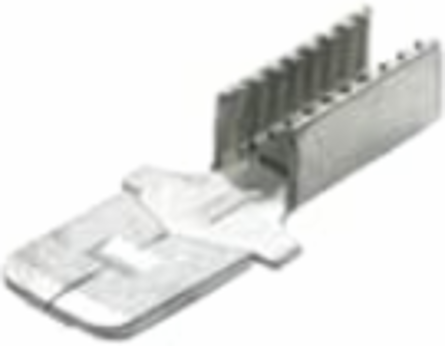

Dragon Tooth 22LM06 INSUL PRC MALE DISCON CU 16-12 AWG
- MPN: 22LM06
- UPC: 786210807805
- PPN: T-B-22LM06
- UNSPSC: 39121447
CAD
$1.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulation Piercing Magnet Wire Male Disconnect, Length .91 Inches, Width .25 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Tab Size .250 x .032, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
Specifications
Additional Information
| Brand / Label | Sta-Kon |
|---|---|
| Material | Copper |
| Product Type | Male Disconnect |
| Standards | UL E9809 |
| Surface Finishing | Tin Plated |
| Effective Date | 19771228 |
|---|---|
| Product Name | STA-KON AND CATAMOUNT TERMINAL |
| Special Functions | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Sub Brand / Label | Dragon Tooth |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4667 >> Wire terminal disconnect |
|---|
