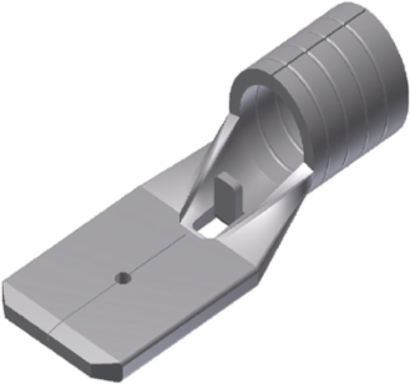

Burndy Q10M25X03D Uninsulated Male Quick Disconnect 12-10 AWG 0.25 Inch x 0.03 Inch
- MPN: Q10M25X03D
- UPC: 781810525036
- PPN: BUR-30009062
- UNSPSC: 39121447
CAD
$0.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Male Quick Disconnect For 12 - 10 AWG (.25 x .03).
Features
- Butted Seam
- Chamfered barrel opening for quick and easy wire insertion
- Mates with dimpled female socket detent for a firm grip
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Conductor - Copper Str Size Range | 12 AWG-10 AWG |
| Dimension - Strip Length inch | 3/8 in |
| Dimension - Width mm | 6 mm |
| Feature - Barrel Style | Chamfered |
| Plated | Y |
| Product Type | TERMINAL |
| Standards - RoHS Compliance Status | CM |
| Application | Male Disconnect |
| Sub Brand | HYDENT |
| Conductor Size | 12 - 10 AWG |
| Connector Type | Male Quick Disconnect |
| Certification Agency | Proposition 65 |
| Description - Invoice | MALE QD U/I 10-12 250x03 |
| Harmonization Code | 8536904000 |
| Lead Time | 12 wk |
| Order Multiple | 100 EA |
| Sub Class Code | B57BK4F |
| Material | Brass |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 1200 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810525036 |
| Case - Number of Sub Packs | 12 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810525037 |
| Each - Number of Sub Packs | 1 |
| Lowest Level UOM | Each |
| Package - GTIN - Package | 30781810525037 |
| Package - Pack Description | Package |
| Package - Total Units | 100 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 44.750 in |
| Pallet Weight | 334.200 lb. |
| Standard Package Quantity | 100 |
| Conductor - Copper Str Size | 12 AWG;10 AWG |
|---|---|
| Dimension - Length Overall inch | 0.66 in |
| Dimension - Width inch | 0.250 in |
| Width | 0.25 in |
| Industry Standard(s) | UL467 |
| Plating Type | Tin |
| Standards - Industry Standards Met | UL467 |
| Trade Name | FINGRIP™ |
| Standard | UL467 |
| Type | Disconnect Connectors |
| Conductor Type | CU C Str-Size |
| ARRA Compliant | Yes |
| Class Code | B57 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| MSDS Flag | No |
| Stock Indicator | N - Non-stock |
| UL Listed | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1200 EA |
| Case - Pack Description | Case (ISO code = 'CA' for HEP) |
| Case - Total Units | 1200 EA |
| Each - Pack Description | Each |
| Package - Gross Weight per Pack | 0.1 lb. |
| Package - Number of Sub Packs | 100 |
| Package - SCC-14 Next Lower Level Sub Pack | 00781810525036 |
| Package Quantity | 100 EA |
| Pallet - GTIN - Package | 70781810525035 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 423610 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| cULus | No |
| UL Recognized | No |
| CSA Approved | No |
|---|---|
| ETL | No |
