Blackburn

Blackburn U 1 N 108 INSULATED ALUM SPLICE

INSULATED ALUM SPLICE
  • MPN: U 1 N 108
  • UPC: 075114100274
  • PPN: T-B-U 1 N 108
  • UNSPSC: 39121449

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$5.28/ EA

Description

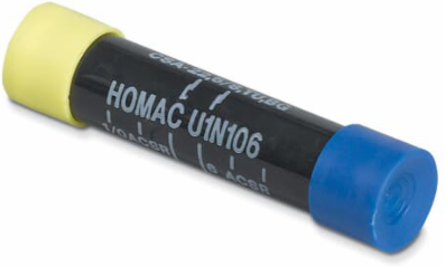

Insulated Aluminum Service Entrance Compression Splices - Conductor A: Yellow, 1/0 ACSR, 1/0 Stranded, Conductor B: Green, 8 Stranded, 6 Solid. For AL to AL or AL to CU Conductors. Splice only 2-1/8 inch x 37/64 inch Diameter. Splice with Sleeve and Caps 3-1/4 inch x 47/64 inch Diameter. Oil Stop. Installing Dies: CSA-22, 5/8, TU, BG.

Specifications

Additional Information

Application
For Standard Conductors
Color
Yellow/Green
Effective Date
20130624
Number of Conductors
2
Product Type
Compression Splice Service Entrance Insulated
Special Functions
Solid center barriers and large chamfers for Easy cable installation. Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Constructed from Aluminum for high conductivity. All splices are marked with installation die codes and compression locations for easy identificaton and installation.
Brand / LabelHomac
Connection TypeCompression
Insulation MaterialYes
Product NameELECTRICAL SPLICE
Size3-1/4 inches long
StandardsANSI C119.4

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach
