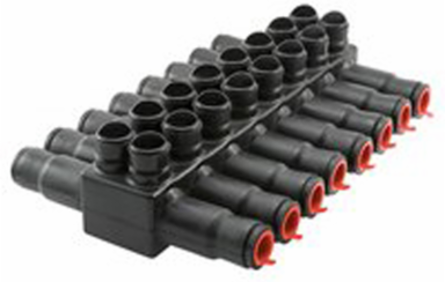

ILSCO PSA6-750SS Insulated Aluminum Pedestal Connector, Dual Rated, Conductor Range 750-2, 6 Ports
- MPN: PSA6-750SS
- UPC: 676566780221
- PPN: ILC-PSA6-750SS
- UNSPSC: 39121408
CAD
$722.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UTILCO Rubber Insulated Pedestal Connector, Mechanical connection, Dual Rated, Aluminum alloy 6061-T6 material, Clear plated connector,Copper/Aluminum Primary Conductor 750 kcmil - 2 Str, 6 conductors, EPDM insulation, Drive Type Main 5/16 Internal Hex, primary color Black,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 67656678022 |
|---|---|
| Dual Rated | TRUE |
| Conductor Size CU (Primary, run, main, line) | 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str |
| Conductor Size AL (Primary, run, main, line) | 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str |
| Drive Size Main | 16-May |
| Wire Binding Screw Size | 15/16-16 |
| Length (IN) | 0 |
| Height (IN) | 0 |
| Material | Aluminum alloy 6061-T6 |
| Connector Finish | Clear |
| Wire Binding Hardware Material | Aluminum |
| Color | Black |
| Water tight | TRUE |
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Conductor Type | Stranded |
| Number of Conductors | 6 |
| Number of Ports Tap | 0 |
| UNSPSC Code | 39121408 |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 750 kcmil - 2 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 750 kcmil - 2 Str |
| Street Light Tap | FALSE |
| Drive Type Main | Internal Hex |
| Wire Binding Screw Size (mm) | 3851046.4 |
| Width (IN) | 0 |
| Weight (LB) | 6.4809 |
| Conductor Material | Copper,Aluminum |
| Insulation | EPDM |
| Wire Binding Hardware Finish | Tin |
| Direct Burial | TRUE |
| ANSI Specification | ANSI C119.1 Class A,ANSI C119.4 Class A |
| Connection | Mechanical |
| Contains DE-OX | FALSE |
| Number of Ports Main | 6 |
| Bag Quantity | 1 |
