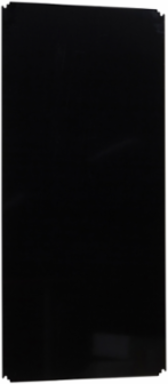

Schneider Electric NSYPMB1510 Bakelite Insulating Mounting Plate 1500mm x 1000mm, 5mm Thick, 150kg Load
- MPN: NSYPMB1510
- PPN: SCH-NSYPMB1510
CAD
$913.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This insulating mounting plate, crafted from durable bakelite, is designed to provide reliable support for various applications within the Thalassa PLA enclosure range. With a substantial permanent permissible load of up to 150 kg, it offers robust performance while maintaining a sleek black finish (RAL 9005) that seamlessly integrates into industrial settings. Measuring 1500 mm in height and 1000 mm in width, this versatile mounting accessory is ideal for multi-purpose use, featuring a thickness of 5 mm and a depth of 125 mm. Its thoughtful design ensures easy installation via M8 screws on back inserts or step slides, making it a practical choice for enhancing the functionality of your electrical enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 34.45 in
Height54.72 in
Physical Attributes
- Color
- Black RAL 9005)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 mounting plate
- Fixing Mode
- by screws M8 - on back inserts
- Mounting Plate Description
- insulating
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- nominal: 1500 mm
- Width Nominal
- nominal: 1000 mm
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 9.560 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Locationback inserts, step slide
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialbakelite
Permanent Permissible Load150 kg
Product Or Component Typemounting plate
ReturnabilityNo
Thickness5 mm
Height Usefulreal: 1390 mm
Width Realreal: 875 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8546900000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
