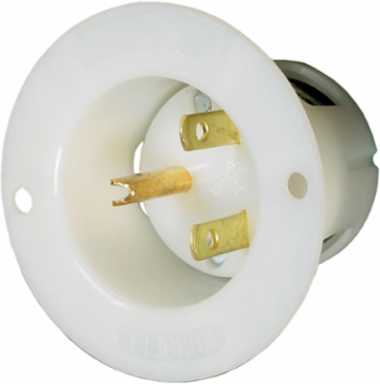

Hubbell Wiring Device-Kellems HBL5678C Flanged Male Inlet 15A 250V 2-Pole 3-Wire Grounding, 1.72 x 2.56 x 2.56 Inch
- MPN: HBL5678C
- UPC: 783585175959
- PPN: HBL-HBL5678C
- UNSPSC: 39121406
CAD
$61.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 15A 250V, 2-Pole 3-Wire Grounding, 6- 15P, White, Single Pack.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Industrial Solutions
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 15 A
- Height
- 2.56 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 6-15P
- Number of Wires
- 3-Wire
- Size
- 1.72 in x 2.56 in x 2.56 in
- Standard
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186
- Type
- Flanged Inlet
- Wattage
- 3750 W
- Voltage Rating Description
- 250 V
- Width
- 2.56 in
- Display Size
- Standard Sized Product
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5678C
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 8.300 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginUnited States
Dimensions1.72 in x 2.56 in x 2.56 in
Horsepower - Maximum1.5
Length1.72 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 V
Wire Size#18 AWG to #10 AWG
Weight0.15 lb.
ConnectivityScrew Terminals
Nema Rating6-15P
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceFLG-INLET, 15A 250V, 6-15P, WH
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA04A020
Current Rating15 A
SeriesExtra Heavy Duty
BOX SIZE4.100x13.400x2.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585175959
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A102
