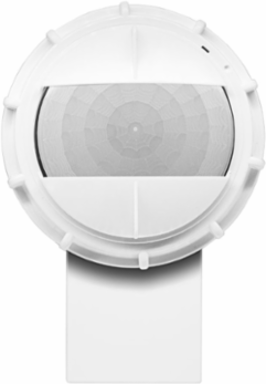

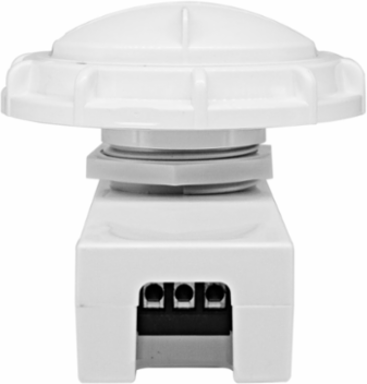

Leviton ZLD1Z-I0W Smart Sensor with Photocell, 120-277V, 360 Coverage, BluetoothTM Connectivity
- MPN: ZLD1Z-I0W
- UPC: 078477214121
- PPN: LEV-ZLD1Z-I0W
CAD
$116.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

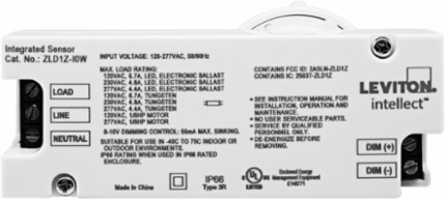

Sold through Leviton OEM Dimming Daylight Harvesting PIR Occupancy Sensor; Internal Fixture Mount; 120-277VAC 50/60 Hz; IP66 Rating for High and Low-Temp, Watertight, Indoor/Outdoor; Single Zone 0-10V Dimming, 120-277VAC single-pole 5A relay; 8-20’ Lens and 20-40’ lens included, bulk pack, 25/case
Features
- Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
- IP66 rated (when installed in an appropriate IP66 rated enclosure/fixture)
- 120-277V Models
- 120-277VAC 1-pole
- Universal voltage models120-347VAC 1-pole
- 208-480VAC 2-pole
- Mesh grouping16 devices per group
- Occupancy
- Daylighting
- Scheduling - Universal voltage models only
- Weekly scheduling
- Time clock or astronomical clock
- Change level, operating mode, daylight mode
- Models without the integral scheduling feature can be part of a group with scheduling
- Controls LED lighting loads up to 6.7A
- Single-level switching
- Occupancy mode:
- Disabled (Photocell only)
- Auto-ON/Auto-OFF

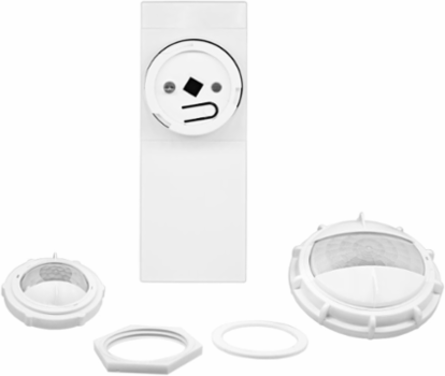

- 360° field-of-view provides up to 8,250 square feet of coverage 8-20 ft. and 20-40 ft. lenses plus aisle way masks included

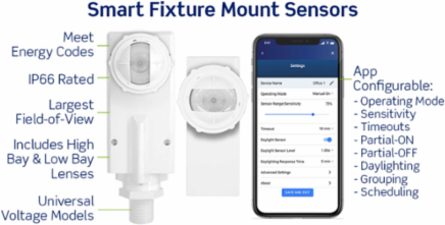

- Leviton Smart IP66 Passive Infrared (PIR) Integrated Fixture Mount Sensors are designed for use with switching or 0-10V LED dimming drivers, and fluorescent ballasts. The sensors use PIR detection technology and advanced optics to provide an exceptional Field-of-View (FOV) for mounting heights from 8-40 ft. The sensors detect motion and turn lights ON when an occupant passes in or out of a sensor zone. The lights remain ON as long as the occupant moves through the sensor zones and after throughout the timeout period. The sensor uses a minor motion feature to detects small body movements which allows the lights to stay ON when individuals in the space are nearly stationary. The major motion feature exhibits a lesser degree of sensitivity requiring larger movements. Configuration is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth ® -enabled Android or iOS device. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
Performance Specifications
- Pattern
- 360°
Mechanical Specifications
- Color
- White
- IP Rating
- IP66 (Type 3R)
- Sensor Mounting Configuration
- Internal
GradeCommercial
Mounting TypeLight Fixture Integrated
SizeWidth: 1.39” (35.3 mm) Length: 3.75” (95.3 mm) Depth: 0.91” (23 mm)
Product Features
- Application
- Warehouses|Loading bays|Outdoor Lighting|Parking garages|Gymnasiums|Libraries|High-bay|Wet Location
- Mounting
- Integrated into Light Fixture
- Sensor Technology
- Passive Infrared (PIR)
CommissioningApp Enabled
Product LineSmart Sensors
Sensor TypeOccupancy / Vacancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Environment
- Indoor/Outdoor
- Relative Humidity
- 0% to 90% non-condensing
Operating Temperature-40°C to 75°C
Storage Temperature Range-40° to 185°F (-40° to 85°C)
Electrical Specifications
- Dimming Technology
- 0-10VDC
- Load Rating
- See Product Specification/Data Sheet
Frequency50/60Hz
Voltage120-277 VAC
Type
- Product Type
- Smart Sensor with Photocell
