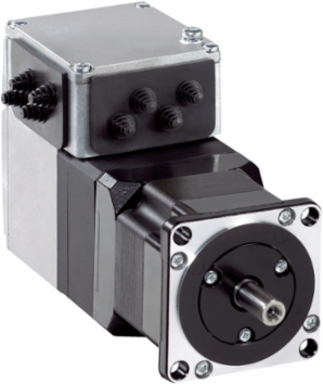

Schneider Electric ILA2T572TC1A0 Integrated Drive ILA with 24-48 V, 6 Poles, Modbus TCP, 1.7 kg
- MPN: ILA2T572TC1A0
- PPN: SCH-ILA2T572TC1A0
CAD
$2901.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This integrated drive from Schneider Electric offers a robust solution for various automation and control applications. Featuring a voltage range of 24-48 V and equipped with six poles, it ensures efficient performance for motion control tasks. The inclusion of Modbus TCP enhances connectivity, making it easier to interface with other automation components. With its compact design and reliable engineering, this integrated drive is an essential component for modern industrial applications seeking to optimize performance and connectivity in motion control setups.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 18-55.2 V
- Nominal Torque
- 0.57 N.m (5.04 lbf.in)
- Continuous Stall Torque
- 0.57 N.m (5.04 lbf.in)
- Associated Fuse Rating
- 16 A
- Maximum Axial Force Fa
- 104 N force pressure, 104 N tensile force
- Network Number Of Phases
- single phase
- Speed Feedback Resolution
- 16384 points/turn

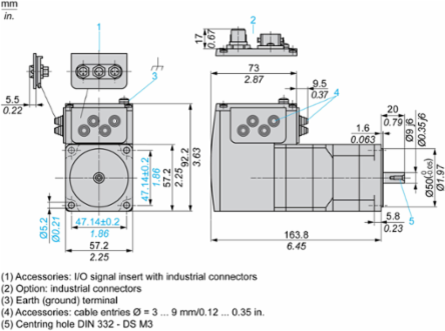

- Length
- 163.8 mm (6.45 in)
- Centring Collar Diameter
- 50 mm (1.97 in)
- Shaft Diameter
- 9 mm (0.35 in)
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 66.6 mm (2.62 in)
- Shaft End
- untapped
- Type Of Cooling
- natural convection
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Storage
- -25 to 70 °C
- Vibration Resistance
- 20 m/s² (10-500 Hz) 10 cycles (EN/IEC 60068-2-6)
- Material
- AC synchronous servo motor
- Standards
- IEC 60072-1, EN/IEC 61800-3, EN 50347, EN 61800-3:2001 second environment, IEC 61800-3 Ed 2, EN/IEC 50178
- Rohs Exemption Information
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Pvc Free
- Yes
- Weee
- EU compliant disposal required
- Country of Origin
- Germany (DE)
Nominal Speed3000 rpm (24 V), 5100 rpm (48 V)
Peak Stall Torque0.85 N.m (7.52 lbf.in)
Current Consumption7500 mA maximum continuous, 9000 mA peak
Maximum Radial Force Fr107 N
Number Of Motor Poles6
Feedback Typesingle turn encoder
Protection Typeoverload of output voltage, safe torque off, short circuit of output voltage
Motor Flange Size57 mm (2.24 in)
Centring Collar Depth1.6 mm (0.06 in)
Shaft Length20 mm (0.79 in)
Mounting Holes Diameter5.2 mm (0.20 in)
Mounting Supportflange
Number Of Motor Stacks2
Degree Of ProtectionIP41 shaft bushing, IP54 total except shaft bushing (EN/IEC 60034-5)
Ambient Air Temperature For Operation0-40 °C without derating; 40-55 °C with power derating of 2% per °C
Relative Humidity15-85% without condensation
Shock Resistance150 m/s² 1000 shocks (EN/IEC 60068-2-29)
Product CertificationscUL, TUV, UL
Environmental DisclosureENVPEP2011004EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationX
MarkingCE
