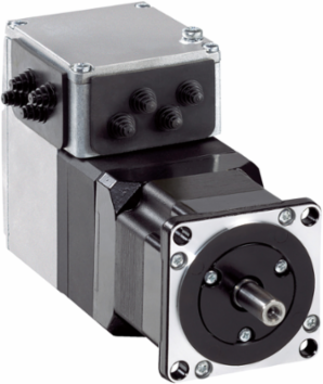

Schneider Electric ILA2T572TC2A0 Integrated Drive with Servo Motor, 24-48 V, Modbus TCP, 0.57 N.m Torque, 1.7 kg
- MPN: ILA2T572TC2A0
- PPN: SCH-ILA2T572TC2A0
CAD
$3781.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Integrated Drive with Servo Motor is engineered for efficient motion control in various automation applications. Operating within a voltage range of 24 to 48 V, this drive provides robust performance with a torque of 0.57 N.m, making it suitable for demanding settings where precision is key. Featuring Modbus TCP connectivity, it facilitates seamless communication and integration into existing systems, enhancing operational capabilities. Designed for versatility in automation and control, this integrated solution offers reliable and effective performance that can meet the needs of modern industrial environments.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 0.57 N.m
- Continuous Stall Torque
- 0.57 N.m
- Voltage
- 24-48 V
- Current Consumption
- 7500 mA maximum continuous, 9000 mA peak
- Maximum Switching Current
- 100 mA per output, 200 mA total
- Maximum Axial Force
- 104 N
- Motor Type
- AC synchronous servo motor
- Number of Motor Stacks
- 2
- Gear Box Type
- Without
- Feedback Type
- Multi turn encoder
- Speed Feedback Resolution
- 16384 points/turn × 4096 turns

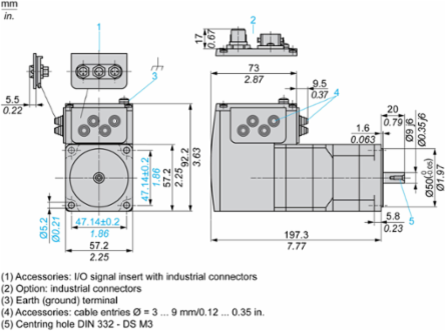

- Length
- 207.8 mm (8.18 in)
- Shaft Length
- 20 mm (0.79 in)
- Motor Flange Size
- 57 mm (2.24 in)
- Circle Diameter of Mounting Holes
- 66.6 mm (2.62 in)
- Centring Collar Diameter
- 50 mm (1.97 in)
- Net Weight
- 1.7 kg (3.75 lb)
- Electrical Connection
- Industrial connector
- IP Degree of Protection
- IP54 total except shaft bushing, IP41 shaft bushing
- Standards
- EN/IEC 61800-3, EN/IEC 50178, EN 50347, IEC 60072-1, IEC 61800-3 Ed 2
- Ambient Air Temperature for Operation
- 0 to 40 °C without derating; 40 to 55 °C with derating
- Operating Altitude
- ≤ 1000 m without derating
- Vibration Resistance
- 20 m/s² (10–500 Hz) 10 cycles
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
Peak Stall Torque0.85 N.m
Nominal Speed3000 rpm (24 V), 5100 rpm (48 V)
Supply Voltage Limits18-55.2 V
Associated Fuse Rating16 A
Maximum Radial Force107 N
PhaseSingle phase
Number of Motor Poles6
Winding TypeHigh speed of rotation and medium torque
Holding BrakeWithout
Accuracy Error+/- 0.05°
Rotor Inertia0.173 kg·cm²
Shaft Diameter9 mm (0.35 in)
Shaft EndUntapped
Mounting Holes Diameter5.2 mm (0.20 in)
Number of Mounting Holes4
Centring Collar Depth1.6 mm (0.06 in)
Mounting SupportFlange
Type of CoolingNatural convection
Product CertificationsUL, cUL, TUV
MarkingCE
Ambient Air Temperature for Storage-25 to 70 °C
Relative Humidity15 to 85% without condensation
Shock Resistance150 m/s² 1000 shocks
Mercury FreeYes
