Schneider Electric

Schneider Electric ILS1V852PB1A0 integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A

integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
  • MPN: ILS1V852PB1A0
  • PPN: SCH-ILS1V852PB1A0

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$1935.11/ EA

    Description

    integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A

    Specifications

    Environment

    Product Certifications
    UL || cUL || TÜV
    Ambient Air Temperature For Operation
    50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
    Vibration Resistance
    20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
    Ambient Air Temperature For Storage
    -25-70 °C
    Ip Degree Of Protection
    IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
    StandardsIEC 50347 || IEC 61800-3 || IEC 50178 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3, Ed 2
    Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
    Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
    Relative Humidity15-85 % without condensation
    Operating Altitude<= 1000 m without derating

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1411002EN
    Pvc Free
    Yes
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity Profile
    ENVEOLI1411002EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

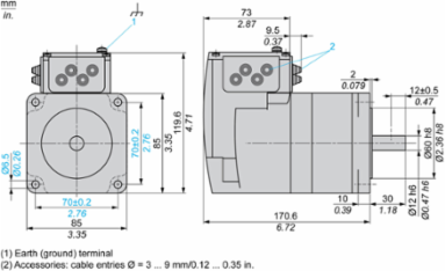

    Circle Diameter Of The Mounting Holes
    99 mm
    Maximum Mechanical Speed
    1500 rpm
    Maximum Radial Force Fr
    100 N
    Number Of Motor Stacks
    2
    Continuous Stall Torque
    4 N.m
    Discrete Input Current
    10-10 mA at 24 V safety input
    Marking
    CE
    Net Weight
    3.6 kg
    Centring Collar Diameter
    60 mm
    Peak Stall Torque
    4 N.m
    Shaft Diameter
    12 mm
    Supply Voltage Limits
    18-40 V
    Speed Feedback Resolution
    1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
    Service Life In Hours
    20000 h bearing
    Feedback Type
    index pulse
    Accuracy Error
    +/- 6 arc min
    Maximum Axial Force Fa
    170 N tensile force) || 30 N force pressure)
    Voltage State 1 Guaranteed
    15...30 V
    Current Consumption5000 mA maximum continuous
    Maximum Switching Current100 mA per output || 200 mA total
    Mounting Supportflange
    Rotor Inertia2.2 kg.cm²
    Centring Collar Depth2 mm
    Second Shaftwithout second shaft end
    Shaft Length30 mm
    Voltage State 0 Guaranteed-3...4.5 V
    Motor Flange Size85 mm
    Number Of Mounting Holes4
    Discrete Output Voltage23...25 V
    Mounting Holes Diameter6.5 mm
    Type Of Coolingnatural convection
    Shaft Enduntapped
    Protection Typeoverload of output voltage || short circuit of the output voltage || safe torque off
    Input/Output Type4 signals (each be used as input or output)
    Associated Fuse Rating10 A

    Specifications

    Range Of Product
    Lexium integrated drive
    Network Type
    DC
    Number Of Motor Poles
    6
    Product Or Component Type
    motion integrated drive
    Length
    170.6 mm
    Communication Interface
    pulse/direction 5 V without RS422, integrated
    Motor Type
    3-phase stepper motor
    Electrical Connection
    printed circuit board connector
    Device Short Name
    ILS
    Holding Torque4 N.m
    Winding Typemedium speed of rotation and medium torque
    Holding Brakewithout
    Network Number Of Phasessingle phase
    [Us] Rated Supply Voltage36 V || 24 V
    Gear Box Typewithout
    Nominal Speed100 rpm 24 V || 200 rpm 36 V
    Nominal Torque4 N.m
