Schneider Electric ILS1W852PB1A0 Integrated Drive with Stepper Motor, 24-36V, 5A, 170.6mm Length
- MPN: ILS1W852PB1A0
- PPN: SCH-ILS1W852PB1A0
CAD
$1935.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This integrated drive from Schneider Electric combines sophisticated motion control with the power of a stepper motor, making it a key component for various automation and control applications. Operating in the range of 24-36V and delivering up to 5A, it offers robust performance for demanding tasks. With a compact length of 170.6mm, this drive is designed to fit seamlessly into a variety of setups, allowing for efficient space utilization. Ideal for engineers and designers looking for reliable and high-performance solutions, this drive stands out as a critical asset in motion control systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24-36 V
- Nominal Speed
- 100 rpm at 24 V, 200 rpm at 36 V
- Holding Torque
- 4 N.m (35.40 lbf.in)
- Continuous Stall Torque
- 4 N.m (35.40 lbf.in)
- Rotor Inertia
- 2.2 kg.cm²
- Maximum Axial Force Fa
- 170 N tensile, 30 N pressure
- Motor Flange Size
- 85 mm (3.35 in)
- Shaft Length
- 30 mm (1.18 in)
- Number Of Motor Stacks
- 2
- Number Of Mounting Holes
- 4
- Circle Diameter Of Mounting Holes
- 99 mm (3.90 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Phase
- Single phase
- Communication Interface

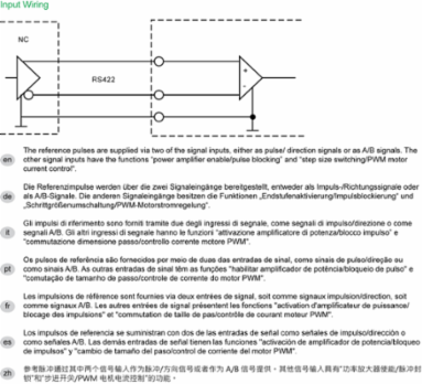

- Pulse/direction 5 V RS422, integrated
- Electrical Connection
- Printed circuit board connector
- Gear Box Type
- Without
- Shaft End
- Untapped
- Associated Fuse Rating
- 10 A
- Voltage State 0 Guaranteed
- -3...4.5 V
- Discrete Input Current
- 10 mA at 24 V safety input
- Maximum Switching Current
- 100 mA per output, 200 mA total
- Accuracy Error
- +/- 6 arc min
- Type Of Cooling
- Natural convection
- Standards Compliance
- EN 61800-3:2001, IEC 60072-1, EN 50347, EN/IEC 61800-3, EN/IEC 50178, IEC 61800-3 Ed 2
- Ambient Air Temperature For Operation
- 0-50 °C without derating; 50-65 °C with power derating 2% per °C
- Operating Altitude
- ≤ 1000 m without derating
- Vibration Resistance
- 20 m/s² (10-500 Hz) 10 cycles
- Sustainable Offer Status
- Green Premium
- PVC Free
- Yes
Current Consumption5 A maximum continuous
Nominal Torque4 N.m (35.40 lbf.in)
Peak Stall Torque4 N.m (35.40 lbf.in)
Maximum Mechanical Speed1500 rpm
Maximum Radial Force Fr100 N

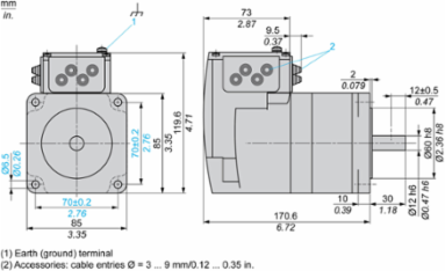

Length170.6 mm (6.72 in)
Shaft Diameter12 mm (0.47 in)
Number Of Motor Poles6
Mounting SupportFlange
Mounting Holes Diameter6.5 mm (0.26 in)
Centring Collar Diameter60 mm (2.36 in)
Motor Type3-phase stepper motor
Network TypeDC
Winding TypeMedium speed of rotation and medium torque
Holding BrakeWithout
Feedback TypeIndex pulse
Supply Voltage Limits18-40 V
Input/Output Type4 signals (each used as input or output)
Voltage State 1 Guaranteed15...30 V
Discrete Output Voltage23...25 V
Speed Feedback Resolution1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°; 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Service Life20000 h bearing
IP Degree Of ProtectionIP41 shaft bushing; IP54 total except shaft bushing
Product CertificationsTÜV, UL, cUL
Ambient Air Temperature For Storage-25 to 70 °C
Relative Humidity15-85% without condensation
Shock Resistance150 m/s² 1000 shocks
Mercury FreeYes
