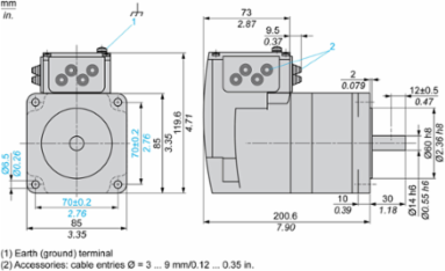

Schneider Electric ILS1V853PB1A0 integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
- MPN: ILS1V853PB1A0
- PPN: SCH-ILS1V853PB1A0
CAD
$2023.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Communications & Management Attributes
- Communication Interface
- pulse/direction 5 V without RS422, Integrated
Physical Attributes
- Motor Flange Size
- 85 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Axial Force Fa
- 170 N tensile force)30 N force pressure)
- Maximum Radial Force Fr
- 110 N
Maximum Mechanical Speed1000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Coefficient 1 1
- -41.391 N.m/rpm, -41.391 N.m/rpm
- Coefficient 2 1
- -99.451 N.m/rpm, -99.451 N.m/rpm
- Protection Type
- short circuit of the output voltage, overload of output voltage, safe torque off
- Supply Voltage Description
- single phase 36 V DC, single phase 24 V DC
- Certificate Agency
- cUL, UL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 7.533353304145811, 8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 2.698645730336541, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 677 kg CO2 eq., 677.1228396132718
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - integrated drive
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Centring Collar Diameter
- 60 mm
- Coefficient 1 0
- 49.109 N.m
- Coefficient 2 0
- 112.839 N.m
- Compatibility Code
- ILS
- Current Consumption
- 5000 mA maximum continuous
- Device Short Name
- ILS
- Feedback Type
- index pulse
- Holding Brake
- without
- Marking
- CE
- Mounting Holes Diameter
- 6.5 mm
- Network Number Of Phases
- 1
- Nominal Speed
- 120 rpm 36 V60 rpm 24 V
- Number Of Motor Poles
- 6
- Number Of Mounting Holes
- 4
- Phase
- single phase
- Product Or Component Type
- motion integrated drive
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 14 mm
- Shock Resistance
- 150 m/s² 1000 shocks EN/IEC 60068-2-29
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Voltage 1
- 24 V
- Voltage 1 Speed 1 Max
- 60.456 rpm
- Voltage 2 Speed 2
- 163.016 rpm
- Voltage State 1 Guaranteed
- 15...30 V
- Pep Code
- ENVPEP1411002EN
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Length Total
- 200.6 mm
- Accuracy Error [Angular]
- 0.1 °
- Package Weight(Lbs)
- 5.1 kg
- Warranty (In Months)
- 18
Coefficient 1 3-1.044 N.m/rpm3, -1.044 N.m/rpm3
Coefficient 2 3-3.06 N.m/rpm3, -3.06 N.m/rpm3
Speed Feedback Resolution1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Voltage State 0 Guaranteed-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage24 V, 36 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.421297158367538
Carbon Footprint Of The Manufacturing Phase [A1 To A3]61 kg CO2 eq., 60.69166080198889
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating10 A
Circle Diameter Of The Mounting Holes99 mm
Coefficient 1 211.511 N.m/rpm²
Coefficient 2 229.895 N.m/rpm²
Continuous Stall Torque6 N.m
Curve Typesemilog
Electrical Connectionprinted circuit board connector
Gear Box Typewithout
Holding Torque6 N.m
Motor Type3-phase stepper motor
Mounting Supportflange
Network TypeDC
Nominal Torque6 N.m
Number Of Motor Stacks3
Peak Stall Torque6 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium integrated drive
Rotor Inertia3.3 kg.cm²
Service Life In Hours20000 h bearing
Shaft Enduntapped
Sizing ReferenceILS1_853P
Supply Voltage Limits18-40 V
Total Lifecycle Carbon Footprint753 kg CO2 eq.
Vibration Resistance20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Voltage 1 Speed 160.456 rpm
Voltage 236 V
Voltage 2 Speed 2 Max163.016 rpm
Winding Typemedium speed of rotation and medium torque
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Germany, DE
Recyclability Potential In %85
Input/Output Type4 signals (each be used as input or output)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501512040
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 753.4677966081106
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to EN/IEC 60034-5IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V safety input
