Schneider Electric ILS1U853TB1A0 Lexium Integrated Drive with 6-Pole Stepper Motor, 24-36V, 6A, 200.6mm Length

MPN: ILS1U853TB1A0
PPN: SCH-ILS1U853TB1A0
UNSPSC: 39121021

$2023.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated pulse/direction 24V communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 36V DC, a maximum current consumption of 6000mA and a nominal speed of 300RPM at 36V and 100RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 200.6mm and the centering collar dimensions are 2mm (depth) x 60mm (diameter). It weighs 4.7kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN/IEC 50178, EN 50347, IEC 61800-3, Ed 2, EN/IEC 61800-3, IEC 60072-1 and EN 61800-3 2001 standards. It supports 85mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.

Features

Integrated drive ILS with stepper motor
High torque at low speeds
Superior constant velocity characteristics

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, United States

Weight	5100 g

Communications & Management Attributes

Communication Interface	pulse/direction 24 V, Integrated

Physical Attributes

Motor Flange Size	85 mm

Shaft Length	30 mm

Complementary Attributes

Us Rated Supply Voltage	36 V, 24 V
Maximum Mechanical Speed	2000 rpm
Maximum Switching Current	100 mA per output200 mA total

Maximum Axial Force Fa	170 N tensile force)30 N force pressure)
Maximum Radial Force Fr	110 N

Important Information Attributes

Coefficient 1 1	-62.24 N.m/rpm, -62.24 N.m/rpm
Coefficient 2 2	-5.664 N.m/rpm², -5.664 N.m/rpm²
Speed Feedback Resolution	1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
Carbon Footprint Of The Distribution Phase A4	7.533353304145811, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2.698645730336541, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	677 kg CO2 eq., 677.1228396132718
Local Publishable Date	2026-01-12
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Centring Collar Diameter	60 mm
Coefficient 1 0	68.379 N.m
Coefficient 2 0	15.083 N.m
Coefficient 2 3	0.968 N.m/rpm3
Continuous Stall Torque	4.5 N.m
Curve Type	semilog
Electrical Connection	printed circuit board connector
Gear Box Type	without
Holding Torque	4.5 N.m
Motor Type	3-phase stepper motor
Mounting Support	flange
Network Type	DC
Nominal Torque	4.5 N.m
Number Of Motor Stacks	3
Peak Stall Torque	4.5 N.m
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Rotor Inertia	3.3 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILS1_853T
Supply Voltage Limits	18-40 V
Total Lifecycle Carbon Footprint	753 kg CO2 eq.
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	112.33 rpm
Voltage 2	36 V
Voltage 2 Speed 2 Max	284.734 rpm
Winding Type	high speed of rotation and medium torque
Data Source	extrapolated product
Input/Output Type	4 signals (each be used as input or output)
Customs Code	8501512040
Functional Unit Description	To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	85

Coefficient 1 3	-2.06 N.m/rpm3, -2.06 N.m/rpm3
Protection Type	short circuit of the output voltage, safe torque off, overload of output voltage
Supply Voltage Description	single phase 24 V DC, single phase 36 V DC
Certificate Agency	TÜV, cUL, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	5 kg CO2 eq., 5.421297158367538
Carbon Footprint Of The Manufacturing Phase A1 To A3	61 kg CO2 eq., 60.69166080198889
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1411002EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1907
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Associated Fuse Rating	10 A
Circle Diameter Of The Mounting Holes	99 mm
Coefficient 1 2	19.385 N.m/rpm²
Coefficient 2 1	3.756 N.m/rpm
Compatibility Code	ILS
Current Consumption	6000 mA maximum continuous
Device Short Name	ILS
Feedback Type	index pulse
Holding Brake	without
Marking	CE
Mounting Holes Diameter	6.5 mm
Network Number Of Phases	1
Nominal Speed	100 rpm 24 V300 rpm 36 V
Number Of Motor Poles	6
Number Of Mounting Holes	4
Phase	single phase
Product Or Component Type	motion integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	14 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	v6.2.5-6
Sustainable Packaging	No
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	112.33 rpm
Voltage 2 Speed 2	284.734 rpm
Voltage State 1 Guaranteed	15...30 V
Database Version	2024-01

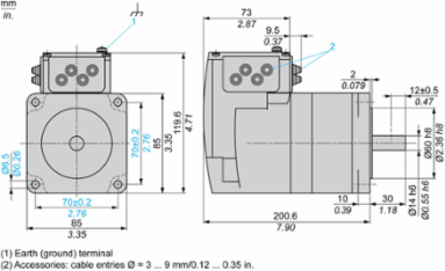

Length Total	200.6 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	753.4677966081106
Circularity Profile	ENVEOLI1411002EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2026-03-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental Disclosure	ENVPEP1411002EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1411002EN
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
