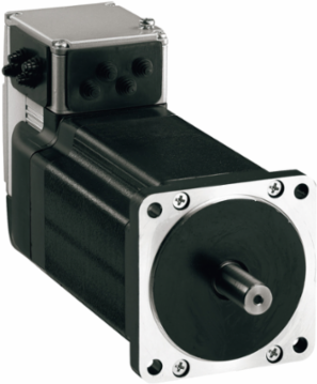

Schneider Electric ILS2T853PB1A0 Integrated Drive with Stepper Motor, 24-48V, 5A, Modbus TCP
- MPN: ILS2T853PB1A0
- PPN: SCH-ILS2T853PB1A0
CAD
$2550.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Integrated Drive from Schneider Electric combines advanced functionality with efficiency in motion control applications. Designed to operate with stepper motors, this model supports a voltage range of 24-48V and delivers a current of up to 5 amps, making it suitable for a variety of automation and control tasks. With Modbus TCP compatibility, it enhances connectivity and communication within networked systems, ensuring seamless integration into modern industrial settings. This product stands out for its reliability and ease of use, positioning it as an essential component in automation solutions.
Documentation & Downloads
Specifications
Additional
- Voltage
- 18-55 V
- Nominal Torque
- 6 N.m
- Peak Stall Torque
- 6 N.m
- Nominal Speed
- 100 rpm (24 V), 200 rpm (48 V)
- Maximum Radial Force
- 110 N
- Number Of Motor Poles
- 6
- Accuracy Error
- +/- 6 arc min
- Shaft Diameter
- 14 mm (0.55 in)
- Motor Flange Size
- 85 mm (3.35 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Circle Diameter Of Mounting Holes
- 99 mm (3.90 in)
- Mounting Support
- Flange
- Motor Type
- 3-phase stepper motor
- Phase
- Single phase
- Service Life
- 20000 h bearing
- Relative Humidity
- 15-85% without condensation
- Permissible Ambient Air Temperature
- 105 °C power amplifier, 110 °C motor
- Vibration Resistance
- 20 m/s² 10-500 Hz, 10 cycles (EN/IEC 60068-2-6)
- IP Degree Of Protection
- IP41 shaft bushing, IP54 total except shaft bushing (EN/IEC 60034-5)
- Mercury Free
- Yes
- RoHS Compliance
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty
- 18 months
Current Consumption5000 mA maximum continuous
Holding Torque6 N.m
Continuous Stall Torque6 N.m
Maximum Mechanical Speed2000 rpm
Maximum Axial Force170 N tensile force, 30 N force pressure
Speed Feedback Resolution20000 points/turn
Length200.6 mm (7.90 in)
Shaft Length30 mm (1.18 in)
Centring Collar Diameter60 mm (2.36 in)
Mounting Holes Diameter6.5 mm (0.26 in)
Number Of Mounting Holes4
Materialmedium speed of rotation and medium torque winding type
Network TypeDC
Protection TypeSafe torque off, Short circuit output voltage, Overload output voltage
Operating Altitude<= 1000 m without derating
Ambient Air Temperature For Operation0-40 °C without derating, 40-55 °C with 2%/°C power derating
Ambient Air Temperature For Storage-25-70 °C
Shock Resistance150 m/s² 1000 shocks (EN/IEC 60068-2-29)
Sustainable Offer StatusGreen Premium product
PVC FreeYes
Product CertificationsUL, TÜV, cUL
