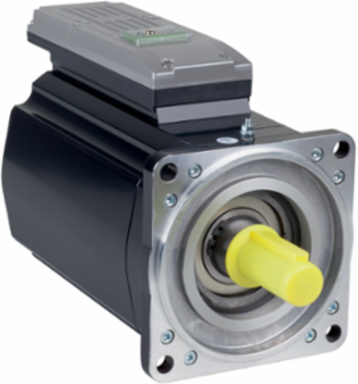

Schneider Electric ILM1402P12A0000 Integrated Servo Motor 12.5 Nm 2000 RPM Keyed Shaft
- MPN: ILM1402P12A0000
- PPN: SCH-ILM1402P12A0000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for precision and high performance in automation and motion control applications, this integrated servo motor from Schneider Electric offers an impressive torque of 12.5 Nm and operates at a speed of 2000 RPM. The keyed shaft design enhances its versatility, allowing for seamless integration into a variety of systems. This motor stands out as a reliable solution for demanding tasks, ensuring smooth operation and exact positioning in sophisticated control environments. With its robust engineering, it is ideal for industries that require efficient and precise motion control.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 250...700 V
- Maximum Current Irms
- 24 A
- Continuous Stall Current
- 4.8 A
- Continuous Stall Torque
- 12.5 N.m
- Torque Constant
- 2.6 N.m/A 120 B0C
- Nominal Speed
- 2000 rpm
- Rotor Inertia
- 12.68 kg.cmB2
- Maximum Axial Force
- 0.2 x Radial Force
- Shaft Length
- 50 mm
- Length
- 309 mm
- Circle Diameter Of The Mounting Holes
- 165 mm
- Centring Collar Diameter
- 130 mm
- Number Of Mounting Holes
- 4
- Mounting Support
- International standard flange
- Type Of Cooling
- Natural convection
- Speed Feedback Resolution
- 128 periods
- RoHS Compliance
- Pro-active compliance
- Country of Origin
- Germany
Nominal Output Power1910 W
Rated Current3.7 A
Peak Stall Torque55 N.m
Nominal Torque9.1 N.m
Back Emf Constant173 V/krpm 20 B0C
Number Of Motor Poles10
Maximum Radial Force2430 N 1000 rpm || 1930 N 2000 rpm
Shaft Diameter24 mm
Key Width40 mm
Motor Flange Size140 mm
Mounting Holes Diameter11 mm
Centring Collar Depth3.5 mm
Shaft EndKeyed
Net Weight17.2 kg
Feedback TypeAbsolute multiturn SinCos Hiperface
Pvc FreeYes
Mercury FreeYes
