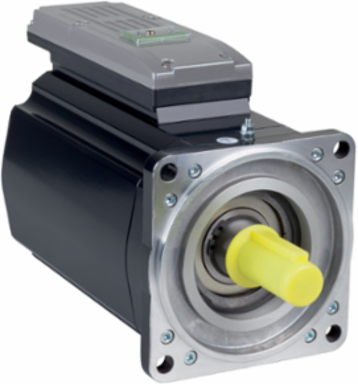

Schneider Electric ILM1401P32A0000 integrated servo motor- 7.5 Nm-3000 rpm-keyed shaft-multiturn-without brake-IP65
Schneider Electric ILM1401P32A0000 integrated servo motor- 7.5 Nm-3000 rpm-keyed shaft-multiturn-without brake-IP65
- MPN: ILM1401P32A0000
- PPN: SCH-ILM1401P32A0000
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
integrated servo motor- 7.5 Nm-3000 rpm-keyed shaft-multiturn-without brake-IP65
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 165 mm
- Shaft Diameter
- 24 mm
- Mounting Holes Diameter
- 11 mm
- Maximum Radial Force Fr
- 2210 N 1000 rpm || 1760 N 2000 rpm || 1530 N 3000 rpm
- Nominal Torque
- 4.6 N.m
- Rotor Inertia
- 7.41 kg.cm²
- Back Emf Constant
- 108 V/krpm 20 °C
- Maximum Axial Force Fa
- 0.2 x Fr
- Centring Collar Depth
- 3.5 mm
- Peak Stall Torque
- 27 N.m
- Holding Brake
- without
- Stator Resistance
- 1.81 Ohm 20 °C Ph/Ph || 1.26 Ohm 120 °C Ph/N
- Second Shaft
- without second shaft end
- Shaft Length
- 50 mm
- Length
- 254 mm
- Torque Constant
- 1.6 N.m/A 120 °C
- Stator Inductance
- 19.1 mH 20 °C Ph/Ph || 9.55 mH 120 °C Ph/N
- Motor Flange Size
- 140 mm
Number Of Mounting Holes4
Key Width40 mm
Type Of Coolingnatural convection
Mounting Supportinternational standard flange
Number Of Motor Stacks1
Number Of Motor Poles10
Continuous Stall Torque7.5 N.m
Shaft Endkeyed
Nominal Speed3000 rpm
Feedback Typeabsolute multiturn SinCos Hiperface
Speed Feedback Resolution128 periods
[In] Rated Current2.9 A
Continuous Stall Current4.7 A
Nominal Output Power1450 W
Net Weight12.5 kg
Centring Collar Diameter130 mm
Maximum Current Irms18.8 A
[Us] Rated Supply Voltage250...700 V
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409011EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1409011EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Of Product
- PacDrive 3
- Device Short Name
- ILM
Product Or Component Typeservo motor integrated drive
Environment
- Ip Degree Of Protection
- IP65
