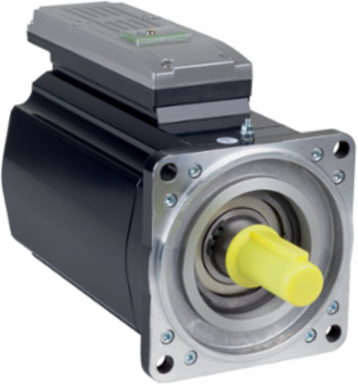

Schneider Electric ILM1401P11A0000 Servo Motor 7.5 Nm 3000 rpm Keyed Shaft 140 mm Flange
- MPN: ILM1401P11A0000
- PPN: SCH-ILM1401P11A0000
CAD
$4894.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This servo motor from Schneider Electric is engineered to deliver robust performance and precision control, making it an invaluable component in automation and motion control applications. With a torque rating of 7.5 Nm and capable of reaching speeds up to 3000 rpm, it efficiently meets the demanding requirements of modern machinery. The motor features a keyed shaft design and a 140 mm flange, ensuring compatibility and secure integration into various setups. Designed for reliability, this servo motor provides the responsiveness and accuracy needed for optimal operation in industrial environments.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 4.6 N.m (40.71 lbf.in)
- Peak Stall Torque
- 27 N.m (238.97 lbf.in)
- Maximum Radial Force
- 2210 N (1000 rpm), 1760 N (2000 rpm), 1530 N (3000 rpm)
- Nominal Output Power
- 1450 W
- Maximum Current Irms
- 18.8 A
- Line Rated Current
- 2.9 A
- Back Emf Constant
- 108 V/krpm 20 0C
- Motor Flange Size
- 140 mm (5.51 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Key Width
- 40 mm (1.57 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Number Of Mounting Holes
- 4
- Shaft End
- Keyed
- Number Of Motor Poles
- 10
- Rotor Inertia
- 7.41 kg.cmb2
- Feedback Type
- Absolute single turn SinCos Hiperface
- Holding Brake
- Without
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409011EN
- Product Or Component Type
- Servo motor integrated drive
- Range Of Product
- PacDrive 3
Continuous Stall Torque7.5 N.m (66.38 lbf.in)
Nominal Speed3000 rpm
Maximum Axial Force0.2 x Radial Force
Continuous Stall Current4.7 A
Rated Supply Voltage250...700 V
Torque Constant1.6 N.m/A 120 0C
Length254 mm (10 in)
Centring Collar Diameter130 mm (5.12 in)
Shaft Diameter24 mm (0.94 in)
Shaft Length50 mm (1.97 in)
Circle Diameter Of Mounting Holes165 mm (6.50 in)
Weight12.5 kg (27.56 lb)
Mounting SupportInternational standard flange
Number Of Motor Stacks1
Ip Degree Of ProtectionIP54
Speed Feedback Resolution128 periods
Type Of CoolingNatural convection
Sustainable Offer StatusGreen Premium product
Pvc FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Circularity ProfileENVEOLI1409011EN
Device Short NameILM
Country of OriginGermany (DE)
