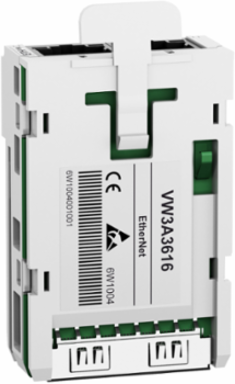

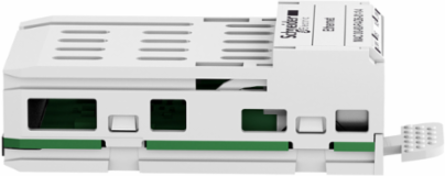

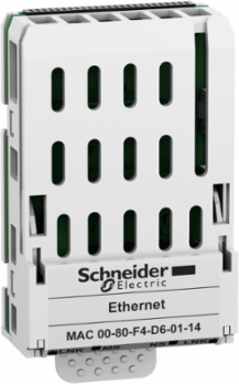

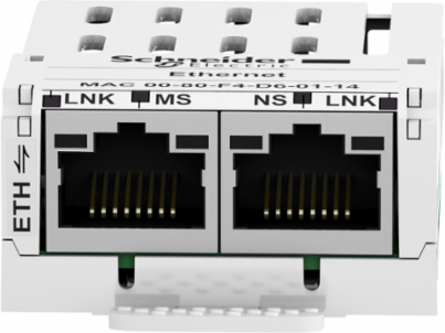

Schneider Electric VW3A3616 Altivar Ethernet Communication Module, 10/100 Mbps, 2 x RJ45 Connectors
- MPN: VW3A3616
- PPN: SCH-VW3A3616
CAD
$449.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Sweden, United States
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP, EtherNet/IP
Communication Serviceup to 8 connections (includes connections of Modbus TCP/Ethernet IP) Ethernet IP/Modbus TCP, FDR Agent Ethernet IP/Modbus TCPread holding registers (03), 63 words max Modbus TCP, read input registers (04), 63 words max Modbus TCP, write single register (06) Modbus TCP, write multiple registers (16), 63 words max Modbus TCP, read/write multiple registers (23) Modbus TCP, read device identification (43) Modbus TCP, diagnostics (08) Modbus TCP, I/O scanner : read/write, 6 words maximum Modbus TCP, communication monitoring Modbus TCPSNMP agent Ethernet IP, Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile Ethernet IP, fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) Ethernet IP
Important Information Attributes
- Persona Type Ids
- EU, OM
- Display Type
- 1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED Ethernet port activity, 1 LED Modbus TCP port activity
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0077414428, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0021703128, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00059042
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Exchange Mode
- half duplex and full duplex
- Product Or Component Type
- communication module
- Returnability
- Yes
- Sustainable Packaging
- No
- Transmission Rate
- 10/100 Mbps
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 0.001
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, Original Equipment Manufacturer
Electrical Connection1 connector RJ45, EtherNet/IP, 1 connector RJ45, Modbus TCP
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0271175564
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6977560453
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1851
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
AddressingIP addressing manual, BOOTP or DHCP
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductAltivar
Software VersionEIME v5.8.1
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Pep CodeENVPEP2010006EN
Pep Verification Date2020-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Accessory / Separate Part Categorycommunication accessories
Package Weight(Lbs)62.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2010006EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- Lexium 32M
- Pep Code
- ENVPEP2010006EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.7353757774
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- communication module
Range Of ProductAltivar
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
