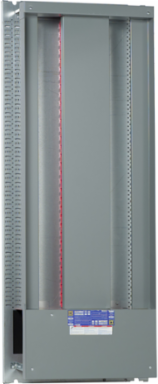

Square D HCJ50918 I-Line Panelboard, 800A, 99 Inch Bar Length, 26.45 Inch Width, Steel Enclosure

MPN: HCJ50918
UPC: 785901858843
PPN: SCH-HCJ50918

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2799.17/ EA

Qty:

Loading add to cart quantity...

Description

This I-Line panelboard from Schneider Electric is engineered to provide robust power distribution solutions, featuring a substantial 800A capacity suited for demanding applications. With a generous 99-inch bus bar length and a 26.45-inch width, this panelboard effectively accommodates various electrical loads while maintaining a compact design that fits seamlessly into typical industrial environments. Encased in a durable steel enclosure, it ensures long-lasting performance and protection against external elements, making it a reliable choice for modern load centers and panel board setups. Whether for commercial or industrial use, this panelboard offers the functionality needed for efficient power management.

Specifications

Rated Current: 800 A

Loadcentre Type: Main lugs

Bar Length: 99 in

Height: 66.03 in

Tightening Torque: 37.96 N.m (85-380 mm² AWG 3/0–750 kcmil)

Enclosure Type: Distribution enclosure

RoHS Compliant: Yes

Mercury Free: Yes

China RoHS Regulation: Pro-active China RoHS declaration

Sustainable Offer Status: Green Premium product

Product Or Component Type: Interiors

Country of Origin: US

Number of Phases3 phases

Circuit Breaker TypeB-Frame, J-frame, H-frame, Q-Frame, QO

Width26.45 in

Depth8.75 in

MaterialPainted steel

Product CertificationscULus

Toxic Heavy Metal FreeYes

Reach RegulationFree of SVHC

Environmental DisclosureENVPEP1409018EN

Range Of ProductI-Line

Localisation On DeviceInterior
