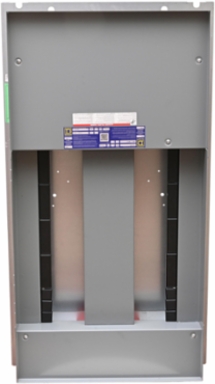

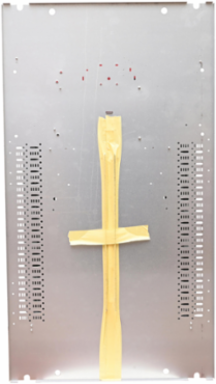

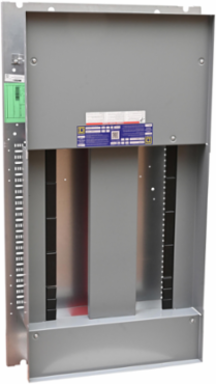

Square D HCJ23734 I-Line Panelboard 400A Main Lugs 45 Inch Bar Length 32 Inch W x 73 Inch H x 9.5 Inch D
- MPN: HCJ23734
- UPC: 785901236733
- PPN: SCH-HCJ23734
CAD
$1508.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Crafted by Schneider Electric, this I-Line Panelboard is designed to provide maximum reliability and efficiency for your electrical distribution needs. With a robust 400A main lug assembly, it features an impressive 45-inch bar length, making it ideal for accommodating various configurations in power distribution applications. Its dimensions of 32 inches in width, 73 inches in height, and 9.5 inches in depth ensure that it seamlessly fits into standard electrical setups while offering ample space for circuit management. Whether you're looking to enhance your current load centers or seeking an effective panel board accessory, this panelboard combines superior engineering with practical functionality for dependable performance in any demanding environment.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.7 in |
|---|
Physical Attributes
| Bar Length | 45 in |
|---|
Complementary Attributes
| Line Rated Current | 400 A |
|---|
Important Information Attributes
| Circuit Breaker Type | B-Frame, J-frame, H-frame, Q-Frame, QO |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 60 kg CO2 eq., 59.92916125751002 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 244 kg CO2 eq., 243.77881324468584 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Enclosure Type | distribution enclosure |
| Load Center Type | main lugs |
| Material | painted steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | interiors |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 597 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Accommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use) |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 78 |
| Width Nominal | 26.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Carbon Footprint Of The Distribution Phase [A4] | 0, 0 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.09687201417265115, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 293 kg CO2 eq., 293.2702034455146 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Localisation On Device | interior |
| Phase | 3 phase |
| Product Destination | enclosure HCJ 32 in 73 in 9.5 in |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Tightening Torque | 28.47-28.47 N.m 13.3-151 mm² (6 AWG...300 kcmil) |
| Pep Code | ENVPEP2509033_V1 |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | [A5] |
| Energy Model - End Of Life [C1-c4] | [C1 - C4] |
| Height Nominal | 48.02 in |
| Certificate Agency | cULus |
| Package Weight(Lbs) | 41.277 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 597.0750499618831 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2509033_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2509033_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | interiors |
|---|
