Documentation & Downloads

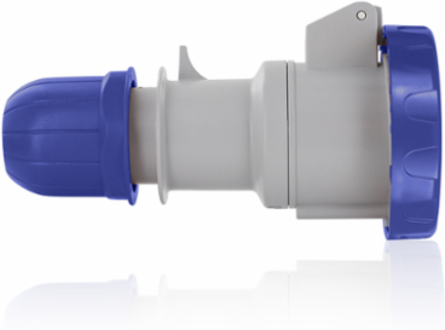

Leviton W432-C9 International Pin & Sleeve Connector 32 Amp 208/250 Volt 4 Pole Blue IP66/IP67
- MPN: W432-C9
- UPC: 078477677520
- PPN: LEV-W432-C9
CAD
$221.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

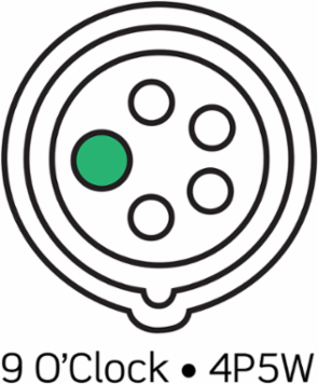

32 Amp, 208-250 Volt, 3P+N+E (4P, 5W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - BLUE
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .453 - .827
Terminal Accom.14-10 AWG
Product Features
- Color
- Blue
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 32 A
- Pole
- 4
- Wire
- 5
Frequency50/60Hz
Voltage208/250 VAC
